NIHAO LOW SPEED MIXING SPECIAL FOR MBBR TANK

ASK AN EXPERT

Nihao MBBR Mixer is specially developed for gentle mixing of the liquid plastic carrier elements (biomedia) in MBBR tanks.

The liquid biomedia used in the MBBR processes in modern sewage treatment plants is usually made of HDPE like Nihao MBBR Media.

MBBR mixer feature

Lower Speed of Impeller speed is only 106 r/m, but Subersible Mixer most is 400 to 1000r/min, it is only 10 to 20% of them. Double-stage new reducer meets Bio carrier tank with special process requirements.

Large diameter three-leaf stainless steel blades to meet Hydraulics and biocarrier process requirements.

The propeller can achieve self-cleaning, the propeller is stainless steel material, Good design but also considering the function of automatic cleaning.

Equipped with the installation system developed by Nihao, it can be installed on the equipment from multiple angles.

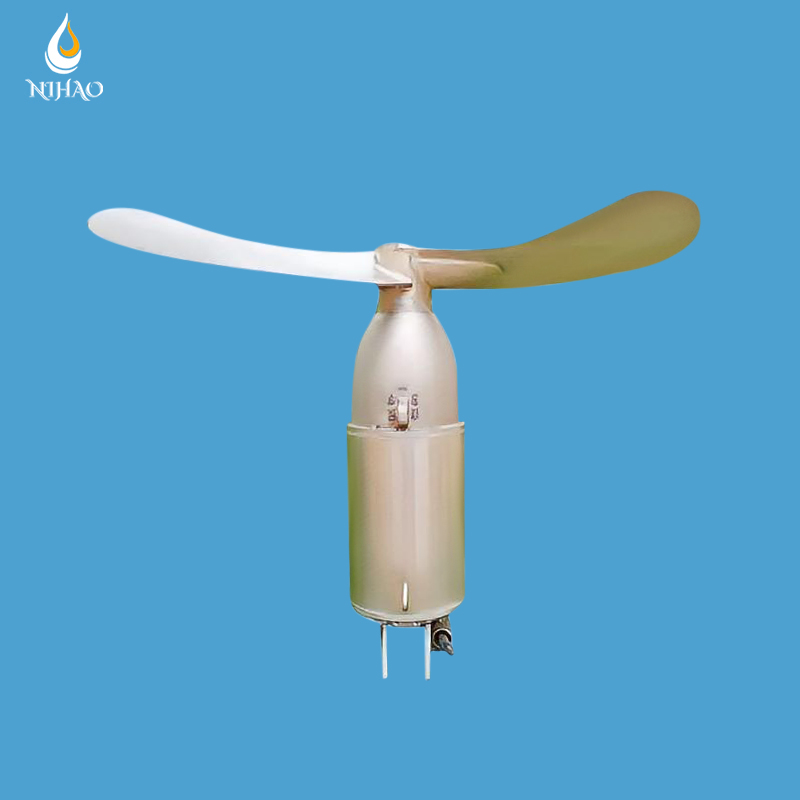

  • Submersible Mixer 15/4

    Submersible Mixer 15/4

    Model: MIXER 15/4
    Power (KW): 15
    Electrode: 4
    Rated current (A): 33
    Speed (r/min): 420
    Quantity (set): 2
    Diameter (mm): 800
    Threst (N): 3500
    Weight (Kg): 150

    READ MORE

  • Submersible Mixer 11/4

    Submersible Mixer 11/4

    Model: MIXER 11/4
    Power (KW): 11
    Electrode: 4
    Rated current (A): 24
    Speed (r/min): 420
    Quantity (set): 2
    Diameter (mm): 750
    Threst (N): 3100
    Weight (Kg): 120

    READ MORE

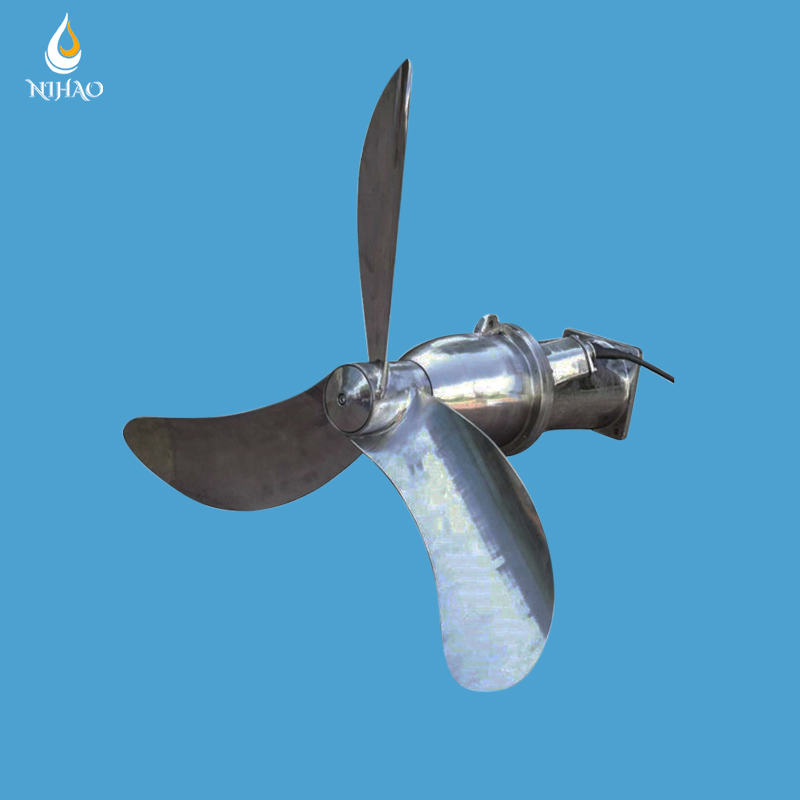

  • Submersible Mixer 7.5/4

    Submersible Mixer 7.5/4

    Model: MIXER 7.5/4
    Power (KW): 7.5
    Electrode: 4
    Rated current (A): 15.5
    Speed (r/min): 420
    Quantity (set): 2
    Diameter (mm): 620
    Threst (N): 2600
    Weight (Kg): 100

    READ MORE

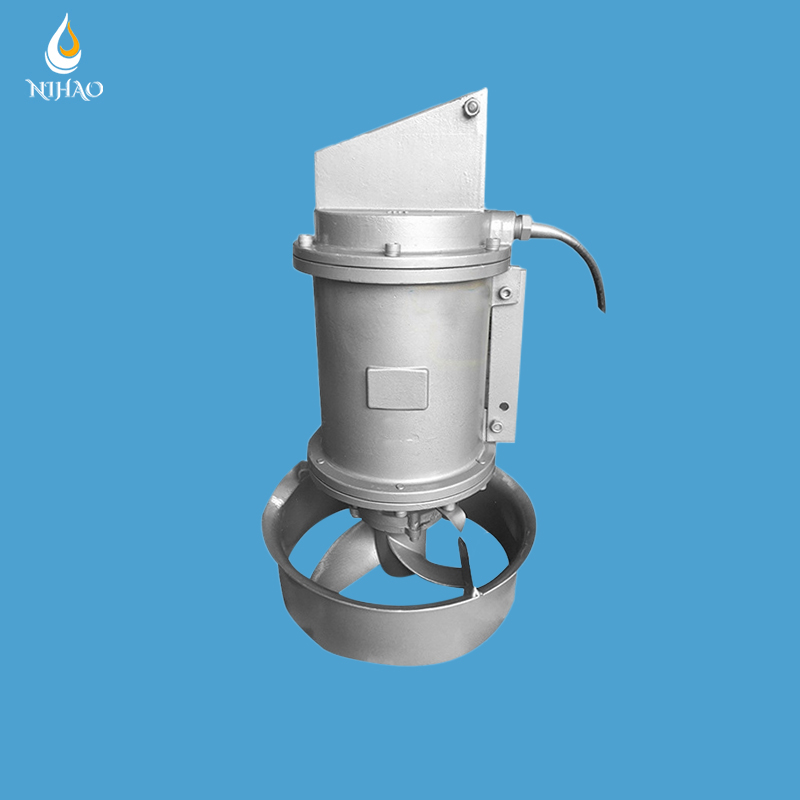

  • Submersible Mixer 5.5/4

    Submersible Mixer 5.5/4

    Model: MIXER 5.5/4
    Power (KW): 5.5
    Electrode: 4
    Rated current (A): 11.8
    Speed (r/min): 420
    Quantity (set): 2
    Diameter (mm): 550
    Threst (N): 2100
    Weight (Kg): 90

    READ MORE

  • Submersible Mixer 4/4

    Submersible Mixer 4/4

    Model: MIXER 4/4
    Power (KW): 4
    Electrode: 4
    Rated current (A): 8.6
    Speed (r/min): 420
    Quantity (set): 2
    Diameter (mm): 550
    Threst (N): 1800
    Weight (Kg): 85

    READ MORE

  • Submersible Mixer 3/4

    Submersible Mixer 3/4

    Model: MIXER3/4
    Power (KW): 3
    Electrode: 4
    Rated current (A): 6.6
    Speed (r/min): 420
    Quantity (set): 2
    Diameter (mm): 400
    Threst (N): 1400
    Weight (Kg): 75

    READ MORE

ASK AN EXPERT

NIHAO MBBR MIXERS

ASK AN EXPERT
nihao Submersible Mixer and mbbr Mixer

Low-speed push flow series products use cycloid reducer, equipped with small power, low speed, large impeller diameter, wide service area. The impeller is made of polyurethane material and aluminum alloy, with high strength and corrosion resistance, which can push the flow and create water flow in addition to the function of mixing.

The motor winding of the submersible mixer is insulated with class F and the protection level is IP68. When used in the aeration system of the sewage plant, the energy consumption of the system can be greatly reduced and the oxygen filling volume can be significantly increased, which can effectively prevent sedimentation. As leading

submersible mixer manufacturer and suppliers in China

, Nihao also offer custom design and engineering services to produce mixers that are tailored to meet the specific requirements of our clients. Also technical support and after-sales services such as installation, maintenance, and repair services.

GET TO KNOW US BY CLICKING BELOW AND SCROLL DOWN TO FIND OUR PRODUCTS AND APPLICATIONS.

GET YOUR FREE QUOTE

LOW SPEED Submersible mixer with propeller PERFORMANCE PARAMETERS

Nihao MBBR Mixer are designed in such a way that they have an exceptionally large, inner surface area on which the bacteria can grow without being knocked off or otherwise destroyed when they rotate and hit each other.

Model Power ( KW) Electrode Ratedcurrent(A Speed( t/min) Quantity(set) Diameter(mm) Threst(N) Weight(Kg)
NIHAO MIXER3/4 3 4 6.6 420 2 400 1400 75
NIHAO MIXER4/4 4 4 8.6 420 2 550 1800 85
NIHAO MIXER5.5/4 5.5 4 31.8 420 2 550 2100 90
NIHAO MIXER7.5/4 7.5 4 15.5 420 2 620 2600 100
NIHAO MIXER11/4 11 4 24 420 2 750 3100 120
NIHAO MIXER15/4 15 4 33 420 2 800 3500 150

MIXING RANGE SPEED OF 0.IM/S (CLEAR WATER)

NIHAO Wastewater Submersible mixer

SUBERSIBLE Aquaculture submersible mixer PERFORMANCE PARAMETERS

Model Motor power (kw) Electrode6 Rated current (A) RPM of vane or propellel (/min) Diameter of vane or propeller (mm) Weight (kg)
NIHAO QJB0.37/6 0.37 6 4 980 220 25
NIHAO QJB0.85/8 0.85 8 3.2 740 260 55
NIHAO QJB1.5/6 1.5 6 4 980 260 55
NIHAO QJB2.2/8 2.2 8 5.9 740 320 88
NIHAO QJB4/6 4 6 10.3 960 320 88
NIHAO QJB1.5/8 1.5 8 5.2 740 400 74
NIHAO QJB2.5/8 2.5 8 7 740 400 74
NIHAO QJB3/8 3 8 8.6 740 400 74

When you use these submersible mixer for aerobic tank, anaerobic tank, primary, secondary, tertiary sewage/water treatment process, the above parameter can be used. We have professional Submersible mixer factory in China, If you need more information and Technical support, Please contact our experts.

ASK AN EXPERTS

NIHAO SUBERSIBLE Agitator FEATURE

ASK AN EXPERT
  • 1. Nihao submersible mixing compact structure, small volume, light weight, simple operation and maintenance, easy installation and maintenance, long service life.
  • 2. The structure of the impeller has the optimum hydraulic design, work efficiency is high, after swept blade has self-cleaning function can prevent sundry winding, jam.
  • 3. Mixed with aeration system use can make a significant reduction in energy consumption, obviously improve the oxygen filling, effectively prevent the precipitation.
  • 4. Motor winding insulation class is F, protection grade IP68, chooses import disposable lubrication maintenance free high quality bearing, has the oil chamber leak detection and exclusive patent motor winding overheating protection and condensation prevention device, make the motor work more safety and reliable.
  • 5. Two independent mechanical seal, mechanical seal friction pay for corrosion resistant material or carbide carbon, silicon, and fasteners are stainless steel material.
  • 6. The unique design of cable seal ruled out the cable leakage hidden trouble.
  • 7. Standard parts adopt why separation technology, can effectively prevent the corrosion.

NIHAO SUBERSIBLE MIXER INSTALLATION METHOD:

ASK AN EXPERT
  • The installation and positioning of the Aquaculture submersible mixer will produce a great impact on the mixing effect.
  • For good results, it is recommended to follow the requirements of professionalsand fully consider the shape of the pond, position of the water inlct and outlet, the vortex resulting from the outflow from the mixer onto the structurcs and somc other conditions.
  • Minimize the gcneration of short-circuit circulation and dead angle to avoid reducing the flow ratc duc to collision with the pond wall.
  • Making reference to the installation drawing below will help you to make a reasonable selection of the industrial mixers and their installation modes.

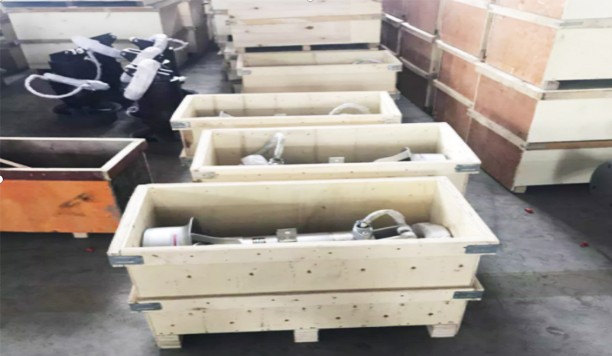

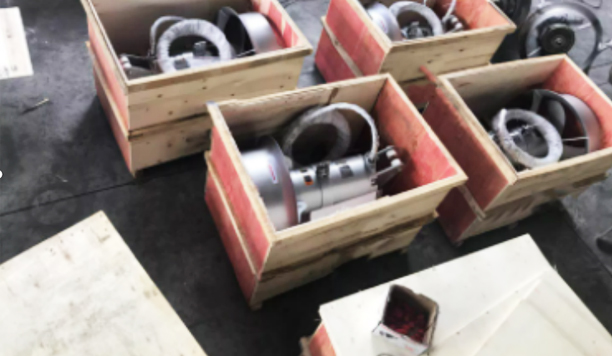

Applications and Packaging

Quality Water Treatment Products

  • Jutnai MBBR Mixer and Subersible Mixer use in the following conditions

    1.The highest medium temperature does not exceed 40℃.
    2.The PH value is between 5 and 9.
    3.The density of liquid shall not exceed 1.15 kg/m³.
    4.Long-term diving operation, the diving depth is generally not more than 20m.

  • Submersible Mixer Application Examples

    1.MBBR reactors
    2.Fish ensilage
    3.Acidic liquids
    4.Liquids with a high chloride content, Such as at
    5.Desalination plants
    6.Anoxic and anaerobic tanks
    7.SBR reactors
    8.Sludge tanks

News Center

PAY ATTENTION TO OUR LATEST NEWS AND EXHIBITIONS

VIEW MORE

NIHAO Submersible Mixer Knowledge Extension

Submersible Mixer for tank
Nihao submersible mixer is designed to be submerged in liquid within a tank or basin. It is typically used to agitate, homogenize, or mix the contents of the tank. Submersible mixers can be used in a variety of applications, such as in wastewater treatment to maintain homogeneous conditions, in aquaculture to prevent sediment buildup, or in chemical processing to promote mixing and reaction. Submersible mixers for tanks can come in various sizes and types, with different features such as adjustable speed, power consumption, and impeller design. The type of submersible mixer required for a particular tank will depend on the specific application, tank size, and fluid characteristics.

Submersible Mixer troubleshoot
Check the power supply: Make sure that the mixer is properly connected to a power source and that the power supply is functioning correctly.
Inspect the impeller: If the impeller is clogged with debris or is damaged, it may cause the mixer to malfunction. Clean or replace the impeller as needed.
Check for vibration: Excessive vibration can be a sign of misalignment, damaged bearings, or a bent shaft. Check these components and make any necessary repairs.
Verify the motor is functioning: If the mixer is not turning on, check the motor for signs of damage or overheating. Replace the motor if necessary.
Inspect the seal: If the mixer is leaking, it may be due to a damaged or worn seal. Replace the seal to prevent further leaks.
Review the mixer's installation: Make sure that the mixer is installed correctly and that it is compatible with the tank or basin where it is being used.
