AERATION HOSE PROCESS

ASK AN EXPERT

Nihao Pond aeration hose has high efficiency oxygenation, three-dimensional oxygenation, which can improve dissolved oxygen in the whole breeding water body in a short time; activate the water body; reduce diseases and promote healthy breeding; safe, convenient, simple and safe operation.

Pond Aerator Tubing overcomes the problem of uneven aeration and affecting water surface operation. The role is mainly used for fish ponds, shrimp ponds and other aquaculture on the oxygen to use! The aeration effect is good and can meet the user's different conditions of the use of aquaculture density! Directly from the production increased the density of breeding, but also to protect the growth environment of the fish. As well known

manufacturer and supplier of aerator hose

, These hoses are made of rubber to withstand outdoor use and can come in a variety of lengths and diameters to fit different needs.
Air hose for pond

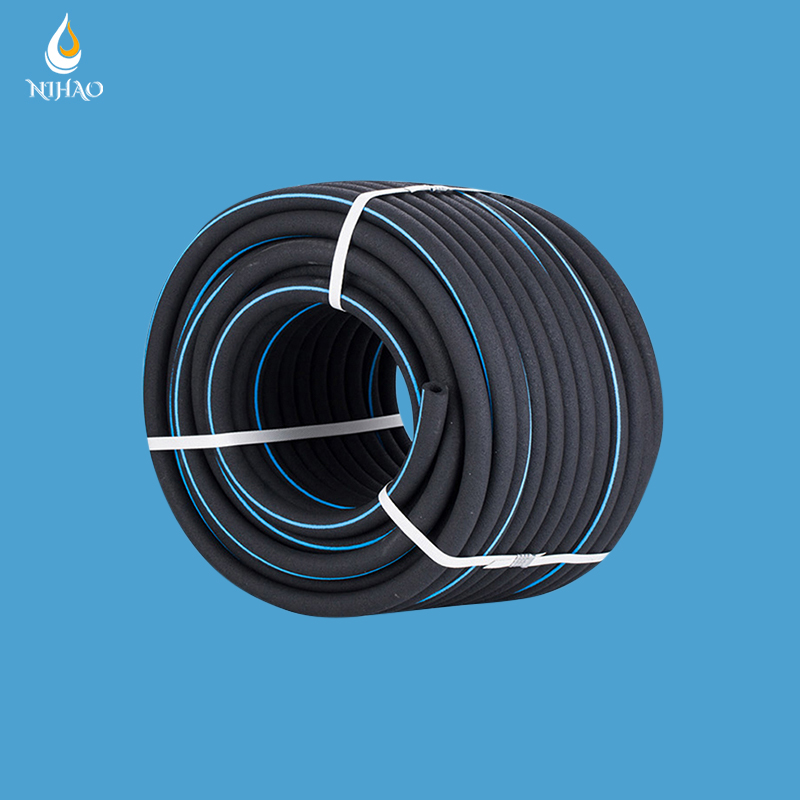

  • Aeration Hose

    Aeration Hose

    Product: Aeration Hose
    Processing Technic: Raw material heating extrusion
    Packaging: Pack with Taping and poly film.
    Microporous density: 1000-1600 hole per meter.
    Aeration Capacity: 0.002-0.006m3/min.m
    Air Flow: 0.1-0.4m3/h.m
    Service Area: 1-8m2/m
    Mating power: 1kw motor power≥100m microporous aeration tube"
    Bubble diameter: 0.3-2mm (freshwater) 0.5-3mm (seawater), with some variation according to the water quality year and water level.
    Pressure loss: 1KW = 100m is ≤ 0.40kpa underwater dissipation ≤ 5kp
    Suitable configuration: Motor power 1kw supporting 100-150m microporous aeration tube
    Power Efficiency: 0.15kw, ensure the dissolved oxygen reaches above 5mg/L

    READ MORE

  • Aeration Hose

    Aeration Hose

    Product: Aeration Hose
    Processing Technic: Raw material heating extrusion
    Packaging: Pack with Taping and poly film.
    Microporous density: 1000-1600 hole per meter.
    Aeration Capacity: 0.002-0.006m3/min.m
    Air Flow: 0.1-0.4m3/h.m
    Service Area: 1-8m2/m
    Mating power: 1kw motor power≥100m microporous aeration tube"
    Bubble diameter: 0.3-2mm (freshwater) 0.5-3mm (seawater), with some variation according to the water quality year and water level.
    Pressure loss: 1KW = 100m is ≤ 0.40kpa underwater dissipation ≤ 5kp
    Suitable configuration: Motor power 1kw supporting 100-150m microporous aeration tube
    Power Efficiency: 0.15kw, ensure the dissolved oxygen reaches above 5mg/L

    READ MORE

  • Aeration Hose

    Aeration Hose

    Product: Aeration Hose
    Processing Technic: Raw material heating extrusion
    Packaging: Pack with Taping and poly film.
    Microporous density: 1000-1600 hole per meter.
    Aeration Capacity: 0.002-0.006m3/min.m
    Air Flow: 0.1-0.4m3/h.m
    Service Area: 1-8m2/m
    Mating power: 1kw motor power≥100m microporous aeration tube"
    Bubble diameter: 0.3-2mm (freshwater) 0.5-3mm (seawater), with some variation according to the water quality year and water level.
    Pressure loss: 1KW = 100m is ≤ 0.40kpa underwater dissipation ≤ 5kp
    Suitable configuration: Motor power 1kw supporting 100-150m microporous aeration tube
    Power Efficiency: 0.15kw, ensure the dissolved oxygen reaches above 5mg/L

    READ MORE

ASK AN EXPERT

Get to know us by clicking below and scroll down to find our products and applications.

GET YOUR FREE QUOTE

NIHAO Aeration Tubing ADVANTAGE

ASK AN EXPERTS

  • High efficiency, high speed oxygen tolerance: microporous nano-aeration tube produces bubbles, the contact surface with the water in the water column is great, the uplifting flow rate is low, the contact time is long (the deeper the water, the more ideal the effect), thus the oxygen dissolution efficiency is extremely high, increasing the oxygen at the bottom of the static water, improving the activity of aquaculture objects in all layers of the water column, creating conditions that increase the biological load of the water column, and ultimately achieving high-density aquaculture.

  • Activation of the water column, to achieve self-purification of the water column: microporous aeration oxygenation is the bottom of the water to increase oxygen, other oxygenation is the surface layer of oxygen, and aquaculture water column is mainly the bottom of the water lack of oxygen, the bottom of the water column deposited fat mud, organic excrement, the remaining deteriorated bait and other difficult organic matter,

  • Simple operation, aeration, low energy consumption, good performance, long service life (no lack of oil, can be used for more than 5 years), and can do single pond oxygenation, double pond oxygenation and multi-pond oxygenation, the main pipeline and bypass pipeline is easy to connect and replace; due to the use of microporous aeration oxygenation, oxygen transfer efficiency is extremely high, so that the unit of water dissolved oxygen quickly reached 4.5mg / L It can greatly save the cost of electricity for farmers.
    Safety, environmental protection, easy maintenance

HOW DOES AERATION HOSE WORK?

ASK AN EXPERT

The air is pressurized through the Roots blower to make the aeration tube expand evenly and reach the target value, and a large number of micro bubbles emerge from the tube wall and are in a smoky and scattered state in the water, rising slowly and dissolving the oxygen effect number, thus substantially increasing the oxygen content of the water, increasing the fluidity of the water and improving the breeding density.

Applicable pressure range: 10 ~ 80 KPa, applicable water depth range: 0 ~ 5 meters; in deep water without aeration due to the influence of static pressure and be flattened, can prevent the clogging of dirt; the hose can be arbitrarily changed shape, supporting the corresponding plastic pipe fittings or copper fittings, can be suitable for all types of fishing pond use layout, to bring real benefits to farmers. We mainly manufacture rubber microporous nano aeration tubing for fish ponds, other aquaculture uses.

WHERE are AERATION HOSE USED?

ASK AN EXPERT
  • Fish Pond
  • Aquaculture
  • Shrimp Farming
  • Prawn Farm Pond
  • Sewage Treatment
  • Oxygen Transfer
  • Industrial Water Treatment
  • Seafood Farms

Nihao AERATION HOSE Parameter

ASK AN EXPERT
Product Aeration Hose Aeration Capacity 0.002-0.006m³/min.m
Processing Technic: Raw material heating extrusion Air Flow: 0.1-0.4m³/h.m
Packaging: Pack with Taping and poly film. Service Area: 1-8㎡/m
Microporous density: 1000-1600 hole per meter. Mating power: 1kw motor power> 100mmicroporous aeration tube
Bubble diameter: 0.3-2mm (freshwater) 0.5-3mm (seawater), with some variation according to the water quality year and water level.
Pressure loss: 1KW =100m is <0.40kpa underwater dissipation < 5kp
Suitable configuration : Motor power 1kw supporting 100-150m microporous aeration tube
Power Efficiency: 0.15kw, ensure the dissolved oxygen reaches above 5mg/L
SIZE PACKING DENSITY WEIGHT VOLUME
10*16MM 200M/ROLL 60-80 MESH/40MESH 21KG 0.075m³
10*20MM 100M/ROLL 60-80 MESH/40MESH 21KG 0.07m³
10*25MM 100M/ROLL 60-80 MESH/40MESH 34KG 0.09m³
12*25MM 100M/ROLL 60-80 MESH/40MESH 30KG 0.09m³
16*25MM 100M/ROLL 60-80 MESH/40MESH 24KG 0.09m³
20*28MM 100M/ROLL 60-80 MESH/40MESH 25KG 0.1m³

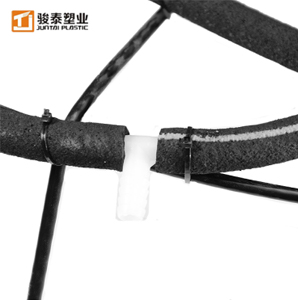

AERATION HOSE INSTALLATION STEPS

ASK AN EXPERT
  • Put a line at the location where the aeration tube is installed and punch a hole according to the line.
  • Attach one end of the aeration tube connector, close the top half of the plastic ring and tighten it.
  • Insert the stainless steel screw into the galvanized internal expansion bolt, screw it to the bottom and tighten it.
  • Adjust the direction of the opening of the plastic ring of the bracket in line with the direction of the length of the aeration hose.
  • Insert the galvanized inner expansion bolt into the inner expansion core, keep the same height and fix the inner expansion.

AERATION HOSE RELEVANT ACCESSORY

ASK AN EXPERT

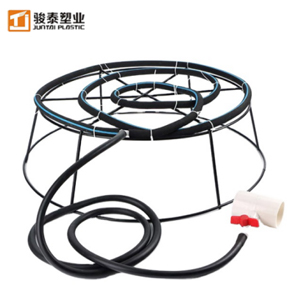

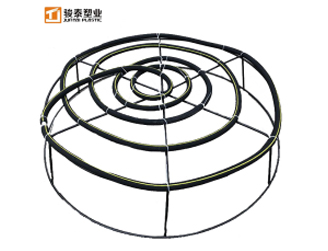

  • Aeration Plate

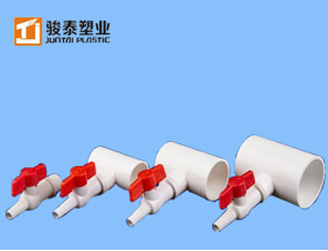

  • T connector + On-off Switch

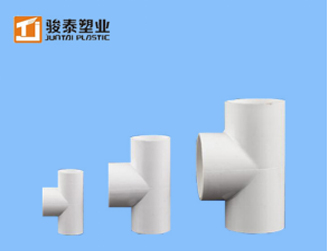

  • T connector

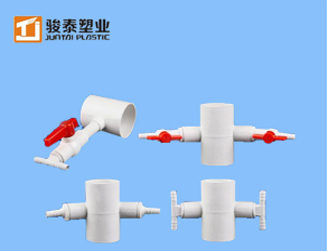

  • Connector + On-off Switch

News Center

PAY ATTENTION TO OUR LATEST NEWS AND EXHIBITIONS

VIEW MORE

NIHAO Aeration Hose Knowledge Extension

Microporous Nano Bubbles Aeration Hose
Nihao microporous nano bubbles aeration hose is a type of flexible tubing that is designed to infuse water with very small bubbles of gas, typically oxygen or air, using a process known as nanobubble aeration. The rubber hose contains small pores or perforations that allow the gas to escape and dissolve into the water as it flows through the tubing. The bubbles created by this process are typically less than 100 nanometers in diameter, which provides several advantages over traditional aeration methods, such as increased oxygen transfer efficiency and improved water quality. Microporous nano bubbles aeration hoses are commonly used in aquaculture, wastewater treatment, and other industrial and commercial applications where high levels of dissolved oxygen are required.
