HOW DOES TUBE SETTLERS WORKING?

ASK AN EXPERT

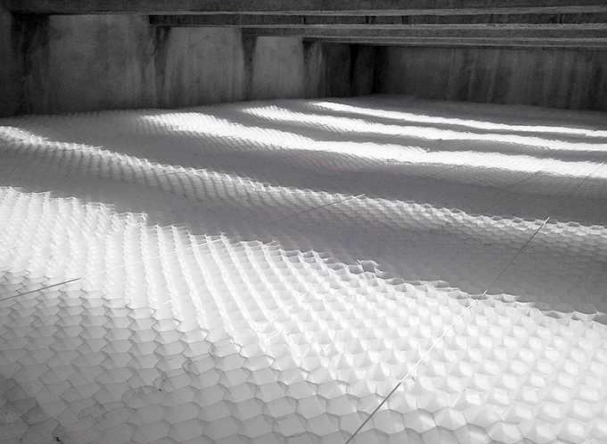

Tube settlers and Lamella plates increase the settling capacity of circular clarifiers and/or rectangular settling tanks by reducing the vertical distance that flocculated particles must settle before coalescing to form larger particles.

Tube settlers use multiple tube channels angled at 60° and adjacent to each other, which combine to form a larger effective settling area. This provides a particle settling depth that is significantly less than the settling depth of conventional clarifiers, thereby reducing settling time.

The tube settler captures settleable fine floc that escapes from the clarification zone below the tube settler and allows larger flocs to enter the tank bottom in a more settleable form. The channels of the tube settler collect the solids into a dense mass, thus facilitating the sliding of the solids down the tube channels.

Tube settler media diagram
Tube settler
  • Tube Settlers Water Treatment

    Tube Settlers Water Treatment

    Tube settlers which are also known as plate settlers or lamella clarifiers are used in drinking- and wastewater treatment plants to settle out suspended solids.

    1. The concept of Tube Settlers

    A tube settler is a device used in water treatment designed to separate suspended solids and solid particles from water. It usually consists of a series of vertically arranged pipes with special structures that increase the settling velocity of solid particles in the water. When water passes through the tube settler, the solid particles settle to the bottom, thereby purifying and improving the water quality. This process is achieved by increasing the settling area of the particles and prolonging the time they remain in the water.

    2. Working principle of Tube Settlers

    Water flows into a tube settler: Water flows through a tube settler, which consists of a series of vertically arranged pipes or plates. The internal structure of these pipes or plates is specially designed to increase the settling velocity of solid particles.

    Slowing down and dispersing: When water enters the tube settler, its speed slows down, causing the particles to settle in the water. The design of the tube settler disperses the flow of water, causing the particles to move in different directions, thereby increasing the chance that they will separate from the water.

    Particle Settling: Due to gravity, solid particles begin to settle to the bottom of the tube settler. These particles can include suspended solids, silt, pollutants and other impurities.

    Clean water collection: Clean water is located in the upper layer of the tube settler. After settling, relatively clean water is collected in the upper part and discharged for subsequent processing or distribution to end users.

    3. The role of Tube Settlers in water treatment

    Tube Settlers play a key role in water treatment and have the following important functions:

    Particle Removal: Tube Settlers can efficiently remove solid particles from water, such as suspended solids, silt, and dust. This helps improve water quality and is suitable for a variety of uses, including drinking water, industrial water, and agricultural irrigation.

    Turbidity Reduction: By removing particles, tube settlers are able to reduce the turbidity of water, making it appear clearer and more transparent.

    Pretreatment: Tube Settlers are usually used as the pretreatment stage of water treatment systems, which reduces the load on subsequent treatment equipment, extends its life, and reduces maintenance costs.

    Improves water quality: By effectively removing particles and impurities, tube settlers help improve water quality, ensuring the safety and availability of drinking and industrial water.

    In summary, the tube settler is an important water treatment equipment that improves water quality by settling solid particles and ensures a clean and usable water supply. It plays a key role in a variety of applications and is vital to safeguarding public health and environmental protection.

    READ MORE

  • Benefits and Benefits of Using Tube Settlers in Water Treatment Processes

    Benefits and Benefits of Using Tube Settlers in Water Treatment Processes

    Tube settlers have many important benefits and benefits in water treatment processes. Here are some of the advantages that stand out:

    Suspended matter removal: Tube Settlers can efficiently remove suspended particles in liquids, including soil, sediment, suspended solids, etc. This is critical to improving water quality and reducing particulate matter pollution.

    Clarify water quality: By separating particulate matter, Tube Settlers can significantly improve water clarity and transparency. This is essential to ensure that drinking water, industrial water, and process water are of good quality in a variety of applications.

    Increase water system efficiency: The use of Tube Settlers can reduce clogging and wear of pipes and equipment, thereby improving the operating efficiency of the water system. Reducing particulate matter deposits also helps extend the life of your equipment.

    Reduce waste and disposal costs: By effectively removing particulate matter during water treatment, tube settlers help reduce waste generation and lower subsequent disposal costs. This helps the environment and reduces operating expenses.

    Improved water quality standards: Tube Settlers can help water treatment plants meet regulations and water quality standards, ensuring discharge water quality meets environmental requirements.

    Suitable for a variety of applications: tube settlers are suitable for a variety of water treatment applications, including drinking water treatment, industrial wastewater treatment, sewage treatment, agricultural irrigation, and water treatment in mining processes, etc.

    Automation and online monitoring: Some modern tube settlers have automated control systems that can automatically adjust operating parameters according to changes in liquid load. In addition, some equipment is equipped with online monitoring devices to monitor water quality and performance in real-time.

    In summary, inline settlers provide a variety of important benefits in water treatment processes, including improving water quality, increasing system efficiency, reducing costs, and meeting environmental requirements. Selecting the appropriate type and size of tube settler is critical for a specific application to ensure optimal benefits.

    READ MORE

  • Application of Tube settlers in sewage treatment plants

    Application of Tube settlers in sewage treatment plants

    Pretreatment stage: In the initial stage of the sewage treatment plant, the raw wastewater usually contains a large amount of suspended solids, solid particles, and impurities. Tube settlers are often used as pretreatment equipment to remove these solid particles from water. This helps reduce the burden on subsequent processing steps and extends equipment life.

    Removal of sediment and suspended solids: Silt and suspended solids in sewage will affect the efficiency of the treatment process and may cause equipment blockage. tube settlers reduce sediment and suspended solids loads in treatment plants by effectively settling these particles.

    Turbidity reduction: After the sewage is treated by the Tube settlers, its turbidity is significantly reduced. This means that the water that passes through subsequent treatment steps is clearer and easier to treat, making the entire treatment process more efficient.

    Improved water quality: The use of tube settlers improves water quality by helping to remove harmful substances, heavy metals, and other pollutants. This is important to protect the environment and ensure final discharge water quality compliance.

    Advantages of Tube Settlers

    Efficient solid particle removal: Tube settlers can efficiently remove solid particles, suspended matter and sediment from water. Its internal structure and design allow solid particles to have a larger settling area, thereby improving removal efficiency.

    Turbidity reduction: By removing suspended solids and particles, Tube settlers can significantly reduce water turbidity, making the water clearer and more transparent, improving water quality.

    Pretreatment capability: Tube settlers are often used as pretreatment equipment in water treatment systems. It can remove most solid particles before the water enters the subsequent treatment equipment, reducing the load on subsequent treatment steps and extending the life of the equipment.

    Wide Applicability: Tube settlers are suitable for a variety of water treatment applications, including drinking water purification, industrial wastewater treatment, sewage treatment, agricultural irrigation, and mineral extraction. They can treat water from different sources, from fresh water to wastewater containing high concentrations of solid particles.

    Low Maintenance Costs: Once installed and operating, tube settlers generally require less maintenance. This reduces operating costs and reduces downtime.

    Space Savings: Tube settlers typically take up less space than other water treatment equipment. This makes them suitable for installation and operation within limited space.

    Sustainability: Tube settlers help improve water quality and reduce water pollution, thereby helping to maintain ecological balance and protect the environment. This is consistent with the Sustainable Development Goals.

    Improved Water Treatment Efficiency: By removing particles and contaminants, tube settlers increase the overall efficiency of your water treatment system, ensuring your water supply is clean, safe, and reliable.

    The importance of Tube settlers in improving water quality and purifying water

    Environmental protection: By effectively removing contaminants and particles from sewage, pipe settlers help reduce adverse impacts on the natural environment. This helps maintain the health of aquatic ecosystems and reduces the risk of water pollution.

    Public Health: One of the primary goals of wastewater treatment plants is to ensure that water discharged into the environment does not pose a threat to public health. tube settlers help remove potential pathogens and harmful substances to ensure safe drinking water and environmental water quality.

    Equipment protection: During the sewage treatment process, tube settlers can reduce the load on subsequent treatment equipment, extend their life, and reduce maintenance costs. This helps improve the efficiency and sustainability of treatment plants.

    In summary, the application of tube settlers in sewage treatment plants is crucial. They improve water quality by removing suspended solids, solid particles and pollutants, ensuring that the final discharged water is clean and compliant with regulations, and reducing the burden on treatment equipment. burden. This is of great significance for environmental protection, public health, and sustainable development.

    READ MORE

  • Tube Settlers design and structure

    Tube Settlers design and structure

    A tube settler is a device used to remove suspended particulate matter from a liquid, typically used in industry and handling liquid streams with high particulate loads. Its design and structure can vary depending on the application, but generally includes the following basic components:

    Inlet pipe: The inlet pipe directs the liquid containing suspended particulate matter to the settler. Usually, the liquid enters the precipitator from the inlet at a certain speed.

    Sedimentation Chamber: The sedimentation chamber is the main part of the settler where the liquid stays for a period of time to allow the particles to settle. The settling chamber is usually a large vessel or tank with sufficient volume to allow particulate matter to settle in the liquid.

    Outlet pipe: The purged liquid flows out from the outlet pipe at the bottom or one side of the settling chamber. This pipe returns the cleaned liquid to the treatment system or to the next stage of the production process.

    Suspended solids discharge port: Usually, there is a discharge port at the bottom of the sedimentation chamber to discharge the settled particles out of the equipment. These vents are often connected to a waste treatment system to allow safe handling or disposal of sediment.

    Separators or fillers: In order to increase the sedimentation efficiency of particles, the sedimentation chamber may include dividers, fillers, or other devices to increase the contact surface area between the liquid and the particles, making it easier for the particles to settle.

    Level Control System: In order to maintain proper level and flow rate, a level control system is usually required. This can include level sensors, flow control valves, and automatic control systems to ensure that the liquid within the settling chamber is maintained at the appropriate level.

    Cleaning the system: Sometimes, the settler needs to be cleaned regularly to remove the sediment and restore its performance. The cleaning system can include flushing nozzles, cleaning media, drains, and other equipment.

    How a Tube Settler Works

    A tube settler is a device used to separate particulate matter suspended in a liquid. It separates the particulate matter from the liquid by gravity. The following is the basic working principle of a

    tube settler:

    Inlet: Contaminated liquid enters the settler through pipes. Typically, liquid enters the inlet of the settler from a pipe.

    Settling Chamber: The liquid enters the settling chamber, which is a relatively large container or tank. In the sedimentation chamber, the velocity of the liquid slows down, giving the particles a chance to settle out of the liquid. The design of the sedimentation chamber usually allows the liquid to remain in it for a period of time so that the particles can settle.

    Gravity sedimentation: The particles gradually sink to the bottom of the sedimentation chamber due to the action of gravity due to their higher density. Larger or heavier particles will settle first, while smaller or lighter particles may take longer.

    Clean liquid collection: The clean liquid is located in the upper part of the settling chamber, and the clean liquid leaves the settler through the outlet pipe for subsequent processing or use. Usually, the outlet pipe is located in the upper part of the settling chamber to ensure that only clean liquid is discharged.

    Particle discharge: There is usually a discharge port at the bottom of the sedimentation chamber to discharge the settled particles regularly or as needed. These particles can be further processed, disposed of or recycled, depending on their nature and application.

    READ MORE

  • Tube Settler 80 PP/PVC

    Tube Settler 80 PP/PVC

    Name: Tube Settler 80 PP/PVC
    Diameter: 80 mm
    Color: Blue or white
    Material: 100% New PP/PVC with UV protector
    Piece Per CBM: 20 piece
    Resistance: UV, Chloride, Acid, Oil
    Certificate: FDA standard with SGS certificate, Fulfills all drinking water requirements like eg NSF, KTW, ACS, DWI 31 Gravity:0.92g/cm3 Slope: 60°
    Surface area: More than 95 m2/m3
    Block size: 1mX 1mX height(0.6m to 1.2m)
    Continue operation temperature: 70 degree
    Max operation temperature: 80 degree( short time)
    Sedimemtation Area: 7m2/m3
    Assembled: By plastic welded gun on site
    Application: Carifier or sedimentation for drink water, municipal and industrial waster water treatment
    Service Life: 5 to 10 years
    Very robust and longlasting + simplest support system

    READ MORE

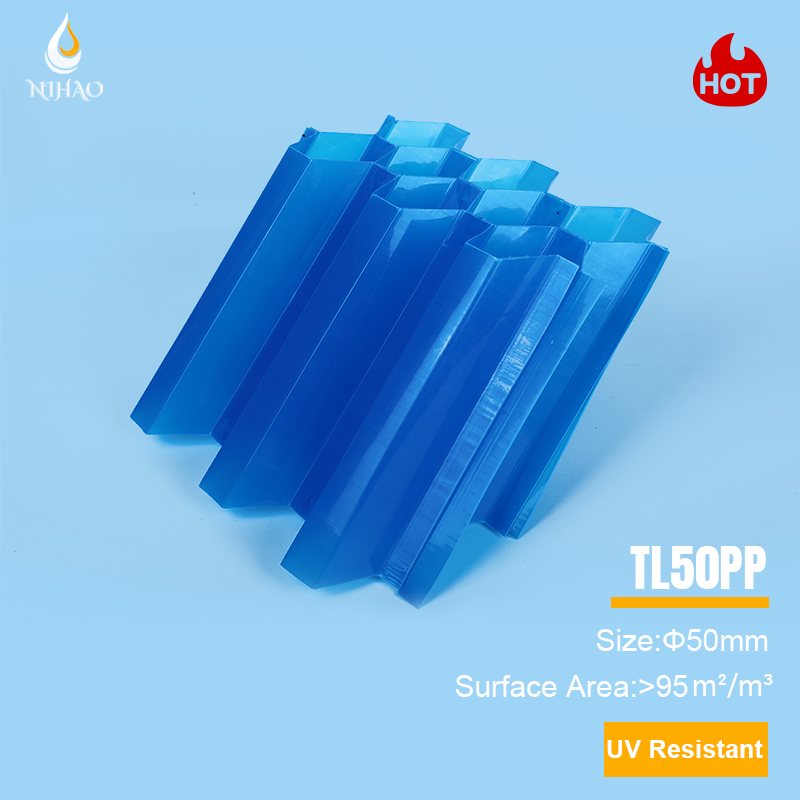

  • Tube Settler 50 PP/PVC

    Tube Settler 50 PP/PVC

    Name: Tube Settler 50 PP/PVC
    Diameter: 50 mm
    Color: Blue or white
    Material: 100% New PP/PVC with UV protector
    Piece Per CBM: 30 piece
    Resistance: UV, Chloride, Acid, Oil
    Certificate: FDA standard with SGS certificate, Fulfills all drinking water requirements like eg NSF, KTW, ACS, DWI 31
    Gravity: 0.92g/cm3 Slope: 60°
    surface area: More than 95 m2/m3
    Block size: 1mX 1mX height(0.6m to 1.2m)
    Continue operation temperature: 70 degree
    Max operation temperature: 80 degree( short time)
    Sedimemtation Area: 9m2/m3
    Assembled : By plastic welded gun on site
    Application: Carifier or Sedimentation for drink water, municipal and industrial waster water treatment
    Service Life: 5 to 10 years
    Very robust and longlasting + simplest support system

    READ MORE

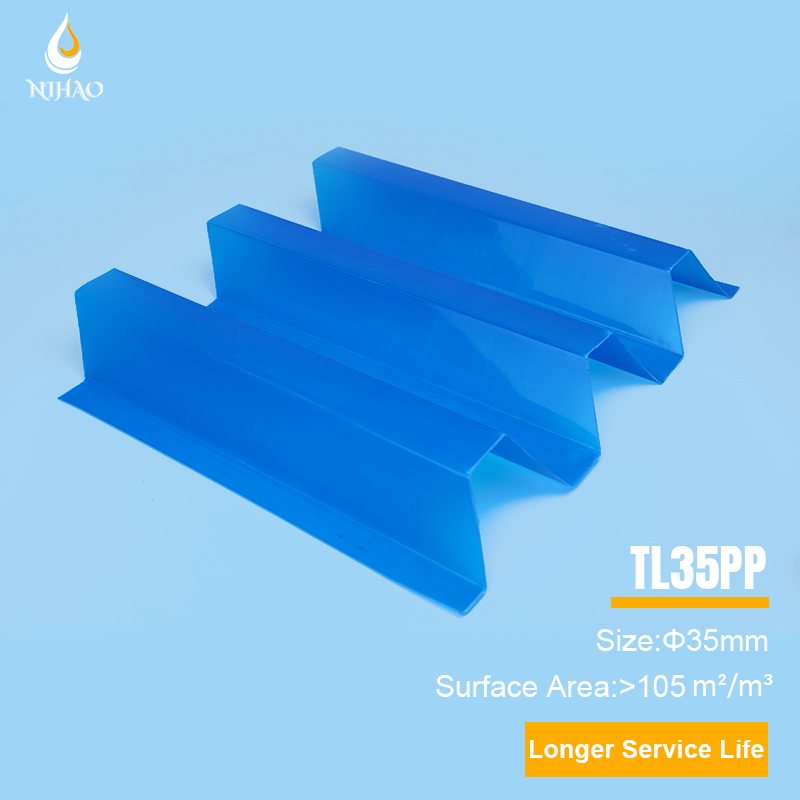

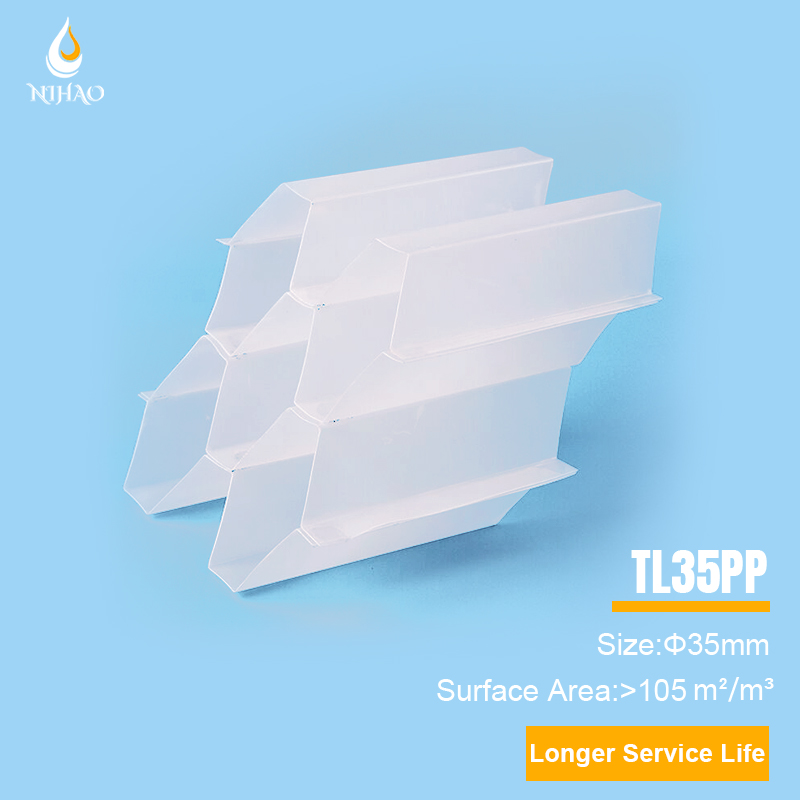

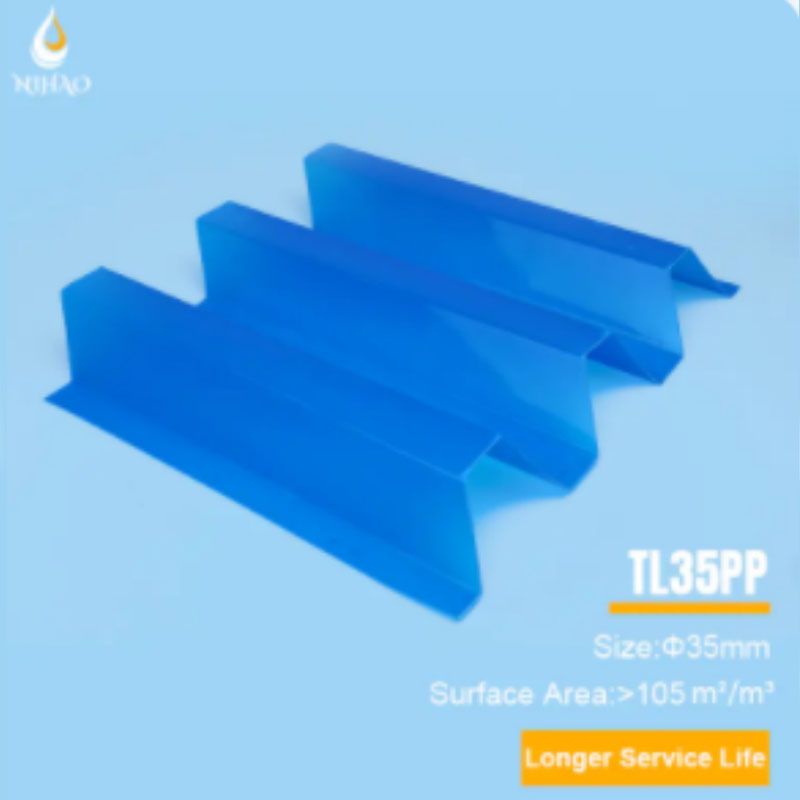

  • Tube Settler 35 PP/PVC

    Tube Settler 35 PP/PVC

    Name: Tube Settler 35 PP/PVC
    Diameter: 35 mm
    Color: Blue or white
    Material: 100% New PP/PVC with UV protector
    Piece Per CBM: 40 piece
    Resistance: UV, Chloride, Acid, Oil
    Certificate: FDA standard with SGS certificate, Fulfills all drinking water requirements like eg NSF, KTW, ACS, DWI 31
    Gravity: 0.92g/cm3 Slope: 60°
    surface area: More than 105 m2/m3
    Block size: 1mX 1mX height(0.6m to 1.2m)
    Continue operation temperature: 70 degree
    Max operation temperature: 80 degree( short time)
    Sedimemtation Area: 10 m2/m3
    Assembled: By plastic welded gun on site
    Application: Carifier or Sedimentation for drink water, municipal and industrial waster water treatment
    Service Life: 5 to 10 years
    Very robust and longlasting + simplest support system

    READ MORE

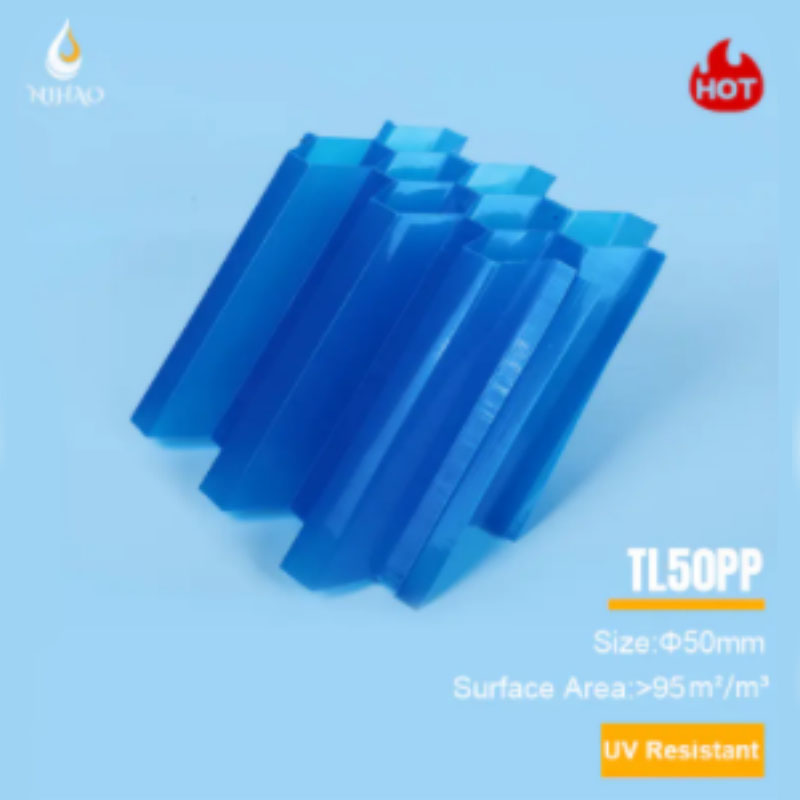

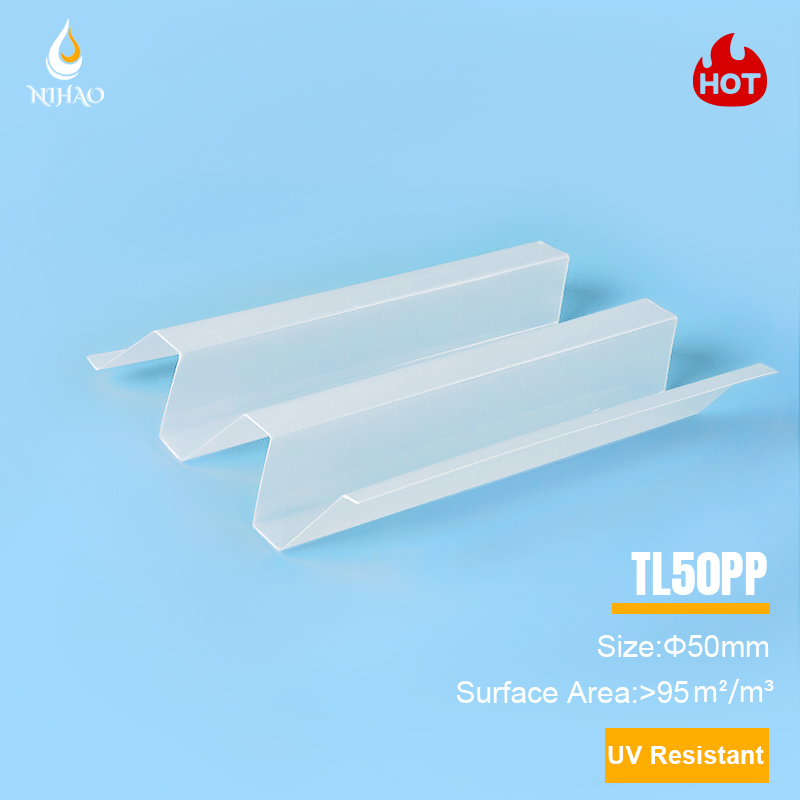

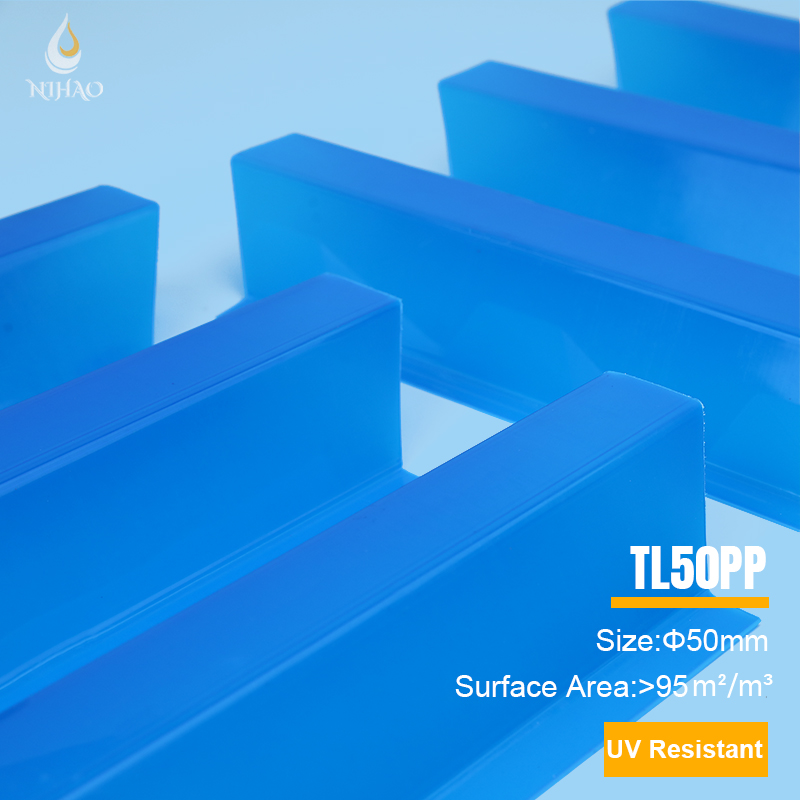

  • Tube Settler 50 PP 05

    Tube Settler 50 PP 05

    Name: Tube Settler 50 PP 05
    Diameter: 50mm
    Color: Blue or white
    Material: 100% New PP with UV protector
    Piece Per CBM: 38 piece Resistance : UV, Chloride, Acid, Oil Gravity: 0.92g/cm3 Slope: 60°
    Surface area: more than 105 m2/m3
    ​Lamella Plate Media/tube settlers/flat settler consists of a series of inclined plates or grooves. These inclined plates or channels provide a large effective surface area and a small footprint.

    READ MORE

  • Tube Settler 50 PP/PVC

    Tube Settler 50 PP/PVC

    Name: Tube Settler 50 PP/PVC
    Diameter: 50 mm
    Color: Blue or white
    Material: 100% New PP/PVC with UV protector
    Piece Per CBM: 30 piece
    Resistance: UV, Chloride, Acid, Oil
    Certificate: FDA standard with SGS certificate, Fulfills all drinking water requirements like eg NSF, KTW, ACS, DWI 31
    Gravity: 0.92g/cm3 Slope: 60°
    surface area: More than 95 m2/m3
    Block size: 1mX 1mX height(0.6m to 1.2m)
    Continue operation temperature: 70 degree
    Max operation temperature: 80 degree( short time)
    Sedimemtation Area: 9m2/m3
    Assembled : By plastic welded gun on site
    Application: Carifier or Sedimentation for drink water, municipal and industrial waster water treatment
    Service Life: 5 to 10 years
    Very robust and longlasting + simplest support system

    READ MORE

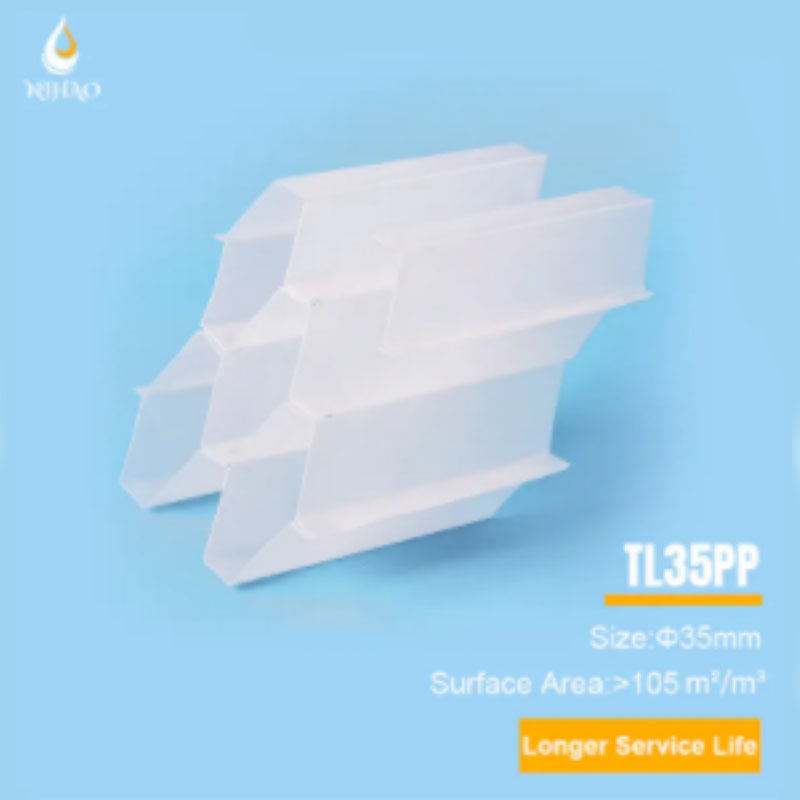

  • Tube Settler 35 PP/PVC

    Tube Settler 35 PP/PVC

    Name: Tube Settler 35 PP/PVC
    Diameter: 35 mm
    Color: Blue or white
    Material: 100% New PP/PVC with UV protector
    Piece Per CBM: 40 piece
    Resistance: UV, Chloride, Acid, Oil
    Certificate: FDA standard with SGS certificate, Fulfills all drinking water requirements like eg NSF, KTW, ACS, DWI 31
    Gravity: 0.92g/cm3 Slope: 60°
    surface area: More than 105 m2/m3
    Block size: 1mX 1mX height(0.6m to 1.2m)
    Continue operation temperature: 70 degree
    Max operation temperature: 80 degree( short time)
    Sedimemtation Area: 10 m2/m3
    Assembled: By plastic welded gun on site
    Application: Carifier or Sedimentation for drink water, municipal and industrial waster water treatment
    Service Life: 5 to 10 years
    Very robust and longlasting + simplest support system

    READ MORE

Why Choose Nihao Tube Settler Media?

ASK AN EXPERT
Nihao PVC Tube settler media provide an inexpensive way to upgrade existing water treatment plant clarifiers and settling tanks to improve performance. They can also reduce the tank/footprint required for new installations or improve the performance of existing settling tanks by reducing the solids loading on downstream filters. We are professional

tube settler media manufacturer, supplier and factory in China

, we offer customized services(OEM&ODM) for your wastewater treatment project. Color: White/Blue.

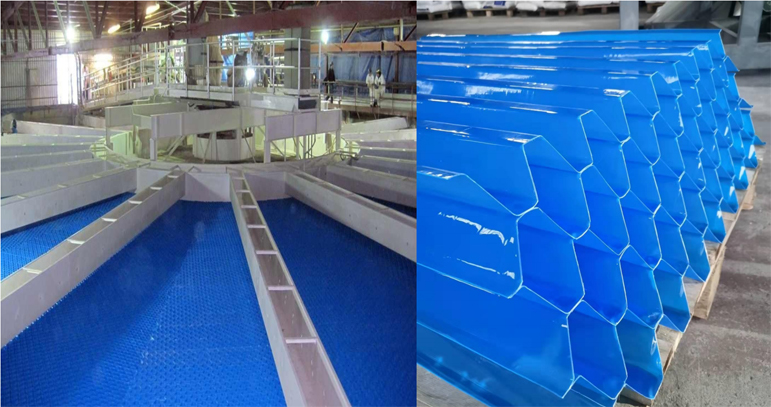

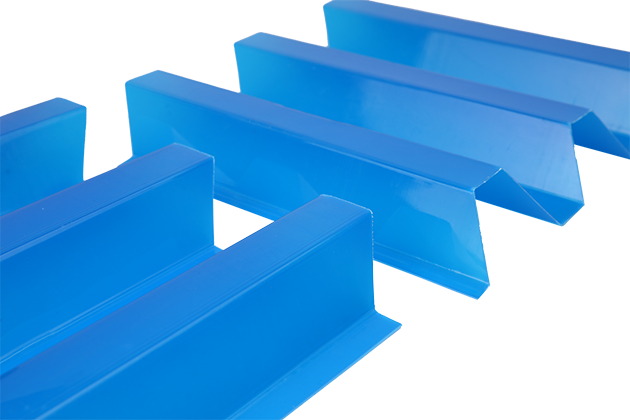

Blue Tube Settler Media

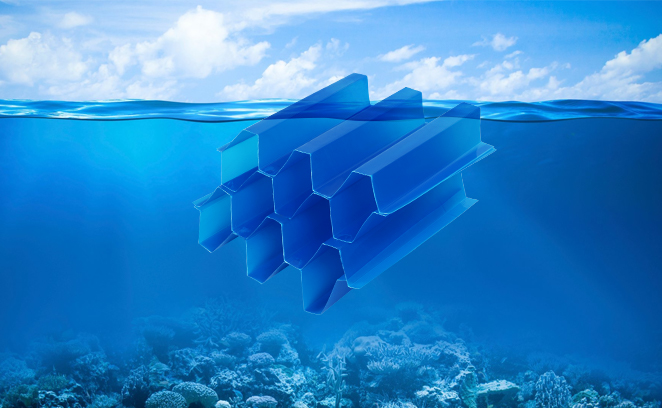

inclined Tube Settler Media

Tube Settlers Advantage For Lamella Clarifier

ASK AN EXPERT

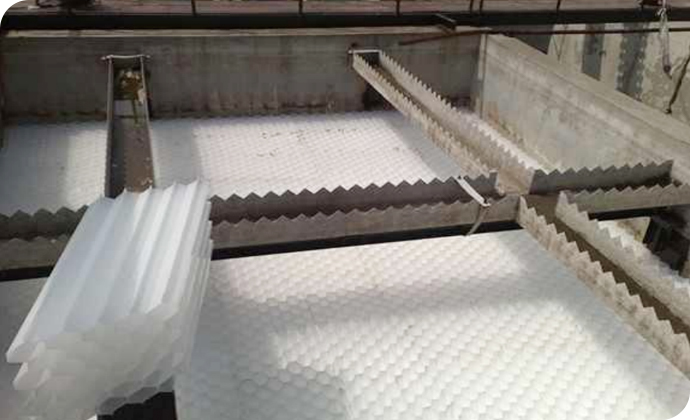

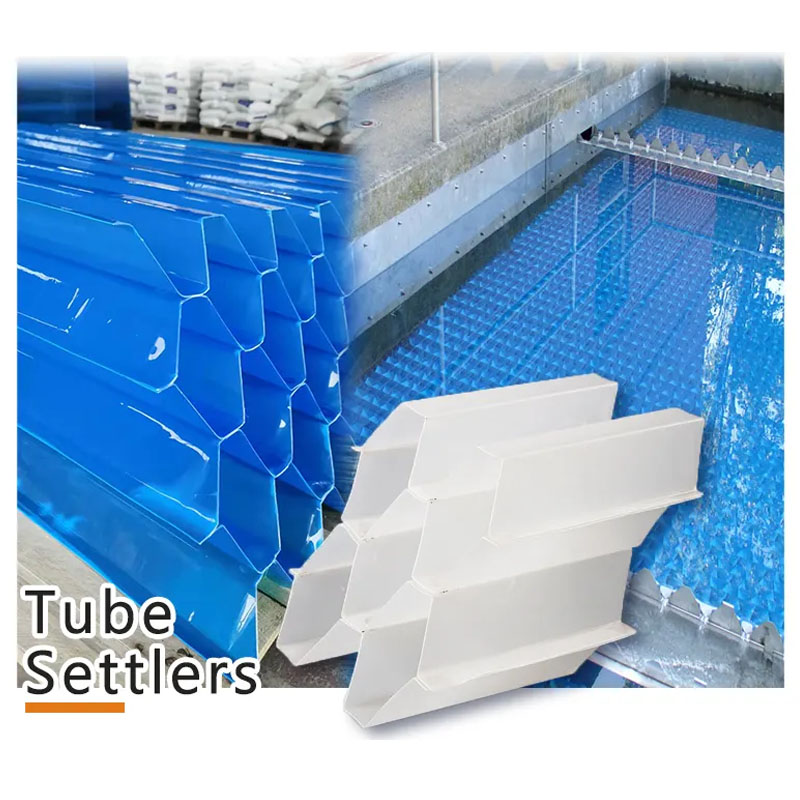

Tube Settler Media for wastewater treatment
  • In many different sizes and shapes of tanks and are held in place by steel brackets.
  • Most are made of PP/PVC, making them lightweight and economical.
  • Simple structure, no wearing parts, durable, reduce maintenance.
  • Stable operation, easy to operate.
  • Less power, save energy.
  • Save area, less investment, quick start, high efficiency.
  • Increased sedimentation area.
  • High sedimentation efficiency, large water production.
  • Good hydraulic conditions, small Re, large Fr, conducive to sedimentation.
  • These PVC and PP Tube Settler Media can be applied to new or existing clarifiers/tanks of any size, other wastewater traetment plants
  • Clarifiers/tanks equipped with tubular settlers operate 2 to 4 times faster than the normal operation of clarifiers/tanks without tubular settlers.
  • Coagulant usage can be cut in half while keeping treatment plant filters' influent turbidity low.
  • Fewer filter backwashes equate to significant savings in water and electricity operating costs.
  • New units with tubular settlers can be designed smaller due to the increased flow capacity.
  • The flow capacity of existing water treatment plants can be increased by adding a tube settler.
  • Nihao UV tube settler media increase the allowable flow rate by expanding the settling capacity and increasing the solids removal rate in the settling tank.
  • Less sludge volume reduces post-treatment workload such as sludge dewatering; the resulting sludge has good settling properties, which facilitates the removal of suspended solids in the later stages.
  • Increases settling area without increasing floor space.
  • Minimizes turbidity load on the filter.
  • Reduces the amount of coagulant promoter by half.
  • They are available in block form and can be easily installed into many different.

GET TO KNOW US BY CLICKING BELOW AND SCROLL DOWN TO FIND OUR PRODUCTS AND APPLICATIONS.

GET YOUR FREE QUOTE

TUBE SETTLER Media

NIHAO UV TUBE SETTLER Media ADVANTAGE

  • Resistant to impact
  • Resistant to sunlight with UV Protector
  • Dust and germs proof
  • Made from premium material meeting high quality requirements(The Highest quality UV Tube Settler media In China)
  • Shipped by sheets, save the freight of transporting
  • Store with Pallets, Save the cost and place of the store
  • Easy welded into block on site
  • Easy install into Sedimentation Tank ( save the cost and labor for Assemble
  • Longer Service Life for 5 to 10 years
  • Offer the Four Guarantee for quality control
  • Worldwide delivery thanks to easy and reliable on-site module assembly
  • Friedly material can be drinking water
  • We have many national and international references ( Used in municipal water treatment plants)
  • New PP Without any Recycle material
  • The cutting angle is neat and flat, making the UV Tube Settlers media more stable and firm
  • Packed in a black bag for UV protection
  • Nihao Guarantee 100% thickness
  • No sand holes or bubble holes in the sheet
  • Easy to weld, high strength, save labor cost
  • Grossy surface,high quality
  • Light Blue color, Make the water in the settling tank clear
  • Easy maintenance

NIHAO UV TUBE SETTLERS Media 13 CERTIFICATES

ASK AN EXPERT

If you are bidding on the project, our certificate can help you get the project, contact us to get the certificate.

  • SGS FDA(For Drink Water)

    Nihao Lamella Clarifier Media are certified by FDA for drinking water applications.

  • SGS -RoHS

    100% raw material, free of 6 harmful substances.

  • SGS-Free Phthalate Certificate

  • SGS Density VOC

GET YOUR FREE QUOTE

LAMELLA TUBE SETTLER Media APPLICATION

ASK AN EXPERT
  • Sedimentation for Drinking water Purification.

    TSS removal and particle separation.

    Upgrade of existing sedimentation tanks.

    Cleaning wash water recycled from vehicle wash systems at quarries and construction sites.

    Tertiary or secondary clarification for municipal WWTP.

    Waste water treatment, surface water treatment and solids/liquid separation.

    Examples of process waste water applications.

    Desalination.

    Food and beverages.

  • Cooling Tower Components

    Heavy metal Waste Water.

    Pulp and paper.

    Biological processes – Potable Water.

    Petrochemical and Process water.

    Pharmaceutical and Chemical.

    Steel, Machinery, Mining and more.

    Upgrade of existing sedimentation tanks.

    Drinking water.

    Process water applications.

    Sedimentation Technology.

White TUBE SETTLER media

TUBE SETTLER Media SPECIFICATIONS

ASK AN EXPERT
Product Picture Diameter Color Material Installation angle(°) Thickness (mm) PCS/CBM
TL35PP 35mm PP/PVC TUBE SETTLER media 35 Blue/White PP/PVC with UV resistance 60 0.4-1.5 40
TL50PP 50mm PP/PVC TUBE SETTLER media 50 Blue/White PP/PVC with UV resistance 60 0.4-1.5 30
TL80PP 80mm PP/PVC TUBE SETTLER media 80 Blue/White PP/PVC with UV resistance 60 0.4-1.5 20

LAMELLA TUBE SETTLER MEDIA PRODUCTION

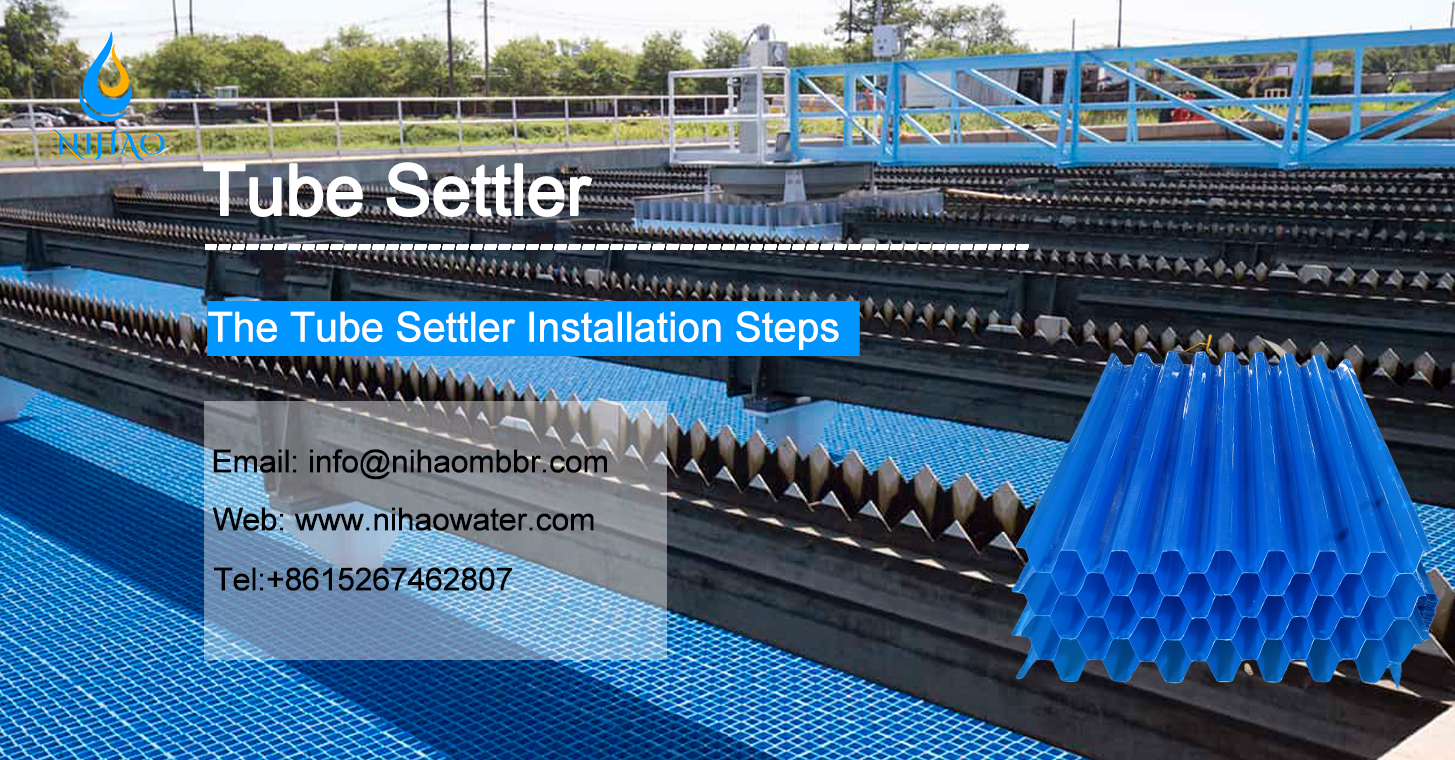

HOW TO WELD AND INSTALL TUBE SETTLERS MEDIA?

ASK AN EXPERT

News Center

PAY ATTENTION TO OUR LATEST NEWS AND EXHIBITIONS

VIEW MORE

NIHAO Tube Settler Knowledge Extension

What is Tube Settler media
Tube settler media is a type of water treatment component that is used to increase the settling capacity of sedimentation basins and clarifiers. It consists of a series of closely spaced tubes or channels that provide a large surface area for particles and flocs to settle onto. As water flows through the tubes, the particles are directed to the bottom of the basin, where they can be removed through the use of a sludge collector. Tube settler media is often made of lightweight and durable materials such as PVC or polypropylene and can come in various sizes and designs to fit different water treatment applications.

Nihao Tube Settler media VS other media
Compared to other types of media used in water treatment, Nihao Tube Settler media offers several advantages. These include a larger surface area for sedimentation, which increases the settling capacity of the clarifier, and a lower cost of installation and maintenance due to their lightweight and modular design.  Nihao UV Tube Settler media is also less prone to clogging and fouling than other media types, which reduces the need for frequent cleaning and replacement. However, Tube Settler media may not be as effective in treating certain types of wastewater with high organic or suspended solid content, which may require the use of other types of media, such as activated sludge or sand filters, to achieve adequate treatment. The choice of media type depends on the specific water treatment requirements and conditions of the application.

Contact Us

*We respect your confidentiality and all information are protected.

×
Password
Get password
Enter password to download relevant content.
Submit
submit
Please send us a message
