Johkasou Wastewater Treatment Plant

GCE Smart Johkasou Process Flow

After being collected through the pipe network,sewage enters the purification tank, where most of the pollutants in the sewage are removed through the anaerobic, anoxic and aerobic action of microorganisms before being discharged.Every 3-6 months, a part of the sludge and sediment at the bottom of the sedimentation tank of the purification tank is sucked out by a fecal suction truck.

Advantages Of GCE Smart Johkasou

1. Standardized and mass-produced, product quality is stable and guaranteed.
2. The raw materials are made of high-end brand resin, with high structural strength and corrosion resistance, and can be used stably underground for 30 years
3. The unique patented water distribution and distribution system is adopted to ensure that there is no dead angle and short flow in the system, and the effective volume is large.
4. Patented surface corrugated reinforcement design technology is adopted, with high structural strength, and can be used in thick frozen soil environment.
5. The patented filler compound combination technology provides a reliable growth environment for microbial growth.
6. Equipped with GCE bio-enhanced denitrification and phosphorus removal bacteria, the system starts quickly, has strong impact load resistance and less sludge.
7. GCE Smart Johkasou is easy to install, operate and maintain, and the system can be operated and controlled remotely.

	The annual production capacity of purification tanks can reach 3,000 sets, with large production capacity and fast delivery cycle.		The porous gel filler has a biofilm surface area 3-4 times that of ordinary plast ic fluidized bed fillers, and the biofilm amount is 1 .9 times that of ordinary plastic fluidized bed fillers.
	Equipped with proprietary GCE bio-enhanced nitrogen and phosphorus removal bacteria, the system starts quickly, has strong resistance to shock loads, and is easy to operate and maintain.		It uses more durable and stronger SMC material and compression molding process, and can be used stably underground for 30 years.
	The patented surface corrugated reinforcement design technology has high structural strength and can be used in the thick frozen soil environment in the north. The designed burial depth can reach 2 meters.		The unique patented water distribution system is used to ensure that there are no dead corners or short-flows in the septic tank system, and the effective volume is large.

Patented Strain

GCE biological strains are highly efficient functional strains that are screened and improved by the Biotechnology Research Center of Joint Universities based on the characteristics of
sewage and the features of septic tank devices, effectively ensuring the treatment effect of the septic tank.

Advantages of GCE biological strains

1. Strong ability to remove total nitrogen and total phosphorus, good sludge settling performance, and good water effluent effect.
2. The treatment efficiency is high, and the treatment capacity per unit tank capacity is 2- 3 times that of the activated sludge".
3. The sludge output is low,andtheunitsewagesludgeoutputisonlvabout30%ofthe"activated sludge method".

Innovative Filler

Innovative filler from Japan
GCE Smart Johkasou adopts porous gel filer from Japan, which has good hydrophilicity, and the unique wall structure has water absorption effect, which greatly increases the specific surface area of the biological carrier. The load of microorgan-isms is large, the volume load is high, and the surviving microorganisms are not easy to lose under the shearing action of water and air, so that the ammonia nitrogen and total nitrogen in the sewage can be reduced at the same time, and it also has advantages such as strong air bubbles cutting ability, large space volume utilization rate and no dead zone ets. The innovative filler are ideal products for microbial carriers in the current biological treatment technology.

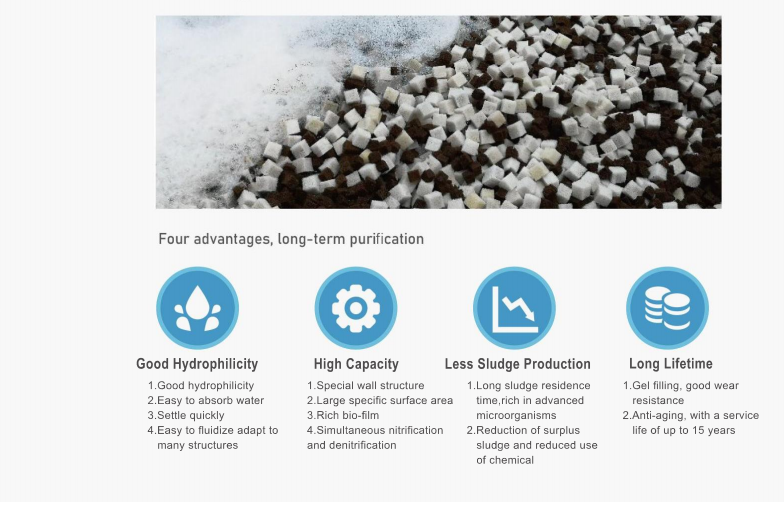

Four advantages, long-term purification

Good Hydrophilicity 1. Good hydrophilicity 2. Easy to absorb water 3. Settle quickly 4. Easy to fluidize adapt to many structures	High Capacity 1. Special wall structure 2. Large specific surface area 3. Rich bio-film 4. Simultaneous nitrification and denitrification	Less Sludge Production 1. Long sludge residence time rich in advanced microorganisms 2. Reduction of surplus sludge and reduced use of chemical	Long Lifetime 1. Gel filling, good wear resistance 2. Anti-aging, with a service life of up to 15 years

Smart Cloud Platform

Aquasust relies on the Internet of Things technology to achieve information-based, digital, and intelligent management of projects from multiple entry points such as efficient operation and maintenance, centralized control, remote diagnosis, online control, equipment management, intelligent after-sales, and data statistics, improving the automation capabilities of equipment, promoting the optimization of sewage treatment processes, improving the quality of operation and maintenance services and work efficiency, and reducing labor costs.

Model Specifications Of GCE Smart Johkasou

Remarks: Aquasust reserves the right to optimize and modify the parameters in the above table.

Multi-field application
