Aerobic Granular Sludge (AGS) is a revolutionary technology in modern wastewater treatment, representing a significant departure from conventional activated sludge systems. At its core, AGS is a biomass-based wastewater treatment process where microorganisms spontaneously aggregate into dense, compact, and self-immobilized structures known as "granules." These granules are characterized by their smooth, spherical shape and excellent settling properties, making them highly efficient for removing pollutants from wastewater.
The fundamental principle behind AGS technology is the cultivation of a robust microbial community within a single, highly efficient particle. Unlike the loose, flocculent biomass in traditional activated sludge, the microbial consortium within an AGS granule is arranged in a multi-layered structure. This unique architecture allows for the simultaneous creation of different microenvironments—aerobic on the outer layer, anoxic and anaerobic in the core—within a single granule. This stratification is crucial for achieving high-efficiency simultaneous removal of organic matter, nitrogen, and phosphorus in a single reactor.
The concept of granular sludge is not entirely new; anaerobic granular sludge has been used for decades in Upflow Anaerobic Sludge Blanket (UASB) reactors. However, the development of aerobic granules is a more recent innovation. The journey began in the early 1990s, with pioneering research demonstrating that aerobic biomass could be induced to form dense, stable granules under specific operational conditions. Early studies focused on the key factors driving granulation, such as controlled shear force, high organic loading rates, and a stringent selection pressure created by a short settling time in Sequencing Batch Reactors (SBRs). Over the last three decades, extensive research and pilot-scale projects have refined the process, leading to the first full-scale implementations of AGS technology, and solidifying its position as a viable and sustainable alternative to traditional methods.
The formation of AGS is a complex and fascinating process known as granulation. It is not a random occurrence but a carefully controlled biological and physical process. In an SBR, the initial flocculent biomass aggregates due to extracellular polymeric substances (EPS) produced by the microorganisms. The system's design, particularly the short settling time, acts as a selective pressure, washing out the slower-settling, flocculent sludge and promoting the growth of the faster-settling, denser granules.
The resulting AGS granule is not a uniform mass but a highly structured micro-ecosystem. A cross-section of a mature granule reveals distinct layers:
Outer Aerobic Layer: The outermost part of the granule is in direct contact with the dissolved oxygen from the aeration process. This layer is rich in heterotrophic bacteria that consume carbon (BOD/COD) and nitrifying bacteria that convert ammonia to nitrate.
Intermediate Anoxic Layer: Just beneath the aerobic zone, oxygen is limited. This is where denitrifying bacteria thrive, using the nitrate produced in the outer layer and a carbon source from the wastewater to produce nitrogen gas.
Inner Anaerobic Core: The very center of the granule is oxygen-free. This anaerobic environment is ideal for phosphorus-accumulating organisms (PAOs) that release phosphorus during the anaerobic phase and take it up in excess during the aerobic phase, contributing to enhanced biological phosphorus removal (EBPR).
The Aerobic Granular Sludge process operates most effectively within a Sequencing Batch Reactor (SBR). An SBR is a "fill-and-draw" system that treats wastewater in a single tank, following a timed sequence of operations. This cyclical nature is the key to creating the selective pressures that promote and maintain granulation.

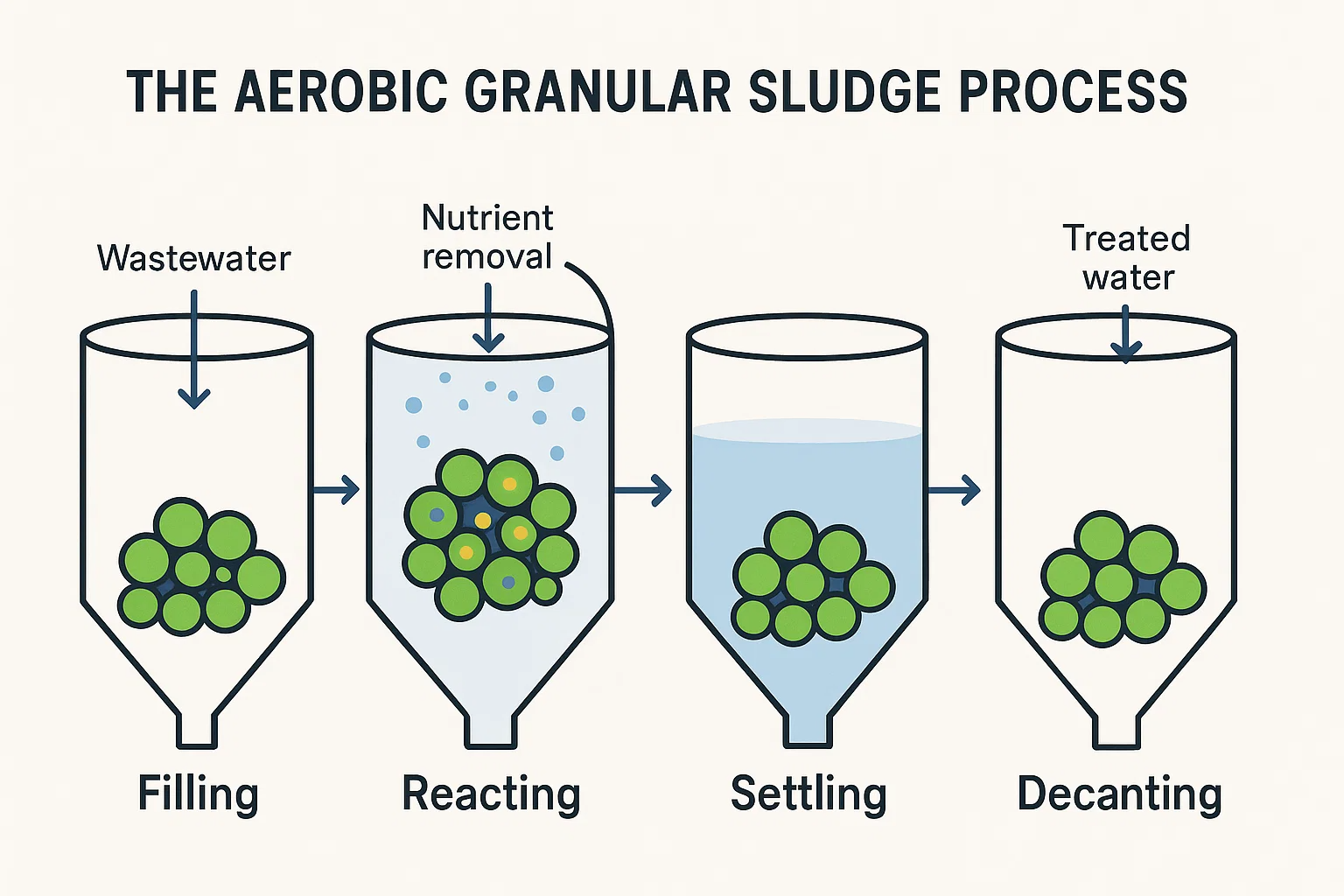

The typical AGS-SBR cycle consists of four primary phases:
Filling Phase: Raw or pre-treated wastewater is rapidly fed into the reactor, mixing with the granular biomass. This is often done under anoxic or anaerobic conditions to facilitate the uptake of specific compounds, like volatile fatty acids (VFAs), which are essential for biological phosphorus removal.
Reacting (Aeration) Phase: Aeration is introduced, providing the dissolved oxygen necessary for aerobic microorganisms. In the outer layers of the granules, heterotrophic bacteria break down organic matter, while nitrifying bacteria convert ammonia to nitrate. Concurrently, the phosphorus-accumulating organisms (PAOs) in the inner core take up the phosphorus released during the filling phase.
Settling Phase: Aeration and mixing are stopped. The heavy, dense AGS granules settle quickly and efficiently to the bottom of the reactor, typically within a few minutes. This rapid settling is a defining feature and a major advantage over conventional flocculent sludge, which can take much longer to settle. The short settling time is a crucial selection mechanism, as any slow-settling biomass is washed out in the next phase, ensuring only the granular biomass survives and proliferates.
Decanting Phase: Once the granules have settled, the treated, clear water (supernatant) is decanted from the top of the reactor without disturbing the settled sludge bed. The treated water is then ready for discharge or further polishing.
One of the most significant advantages of the AGS process is its ability to achieve simultaneous nutrient removal within a single reactor. This is made possible by the unique layered structure of the granules and the specific conditions of the SBR cycle.
Nitrogen Removal: During the aeration phase, oxygen penetrates the outer layer of the granules, where nitrification occurs (ammonia is converted to nitrate). In the inner, oxygen-limited zones of the granule, denitrification takes place simultaneously. Denitrifying bacteria use the nitrate from the outer layer and a carbon source from the wastewater to convert nitrate into harmless nitrogen gas N2 which is released into the atmosphere. This single-granule process eliminates the need for separate anoxic tanks.
Phosphorus Removal: Enhanced Biological Phosphorus Removal (EBPR) is also achieved within the granules. During the filling phase (under anaerobic conditions), phosphorus-accumulating organisms (PAOs) in the inner core release phosphorus into the bulk liquid while taking up organic carbon. In the subsequent aerobic phase, these same organisms rapidly take up phosphorus from the wastewater, storing it in excess within their cells. The phosphorus is then removed from the system when a portion of the sludge is periodically wasted.
This efficient, multi-process functionality within a single, compact reactor is what makes Aerobic Granular Sludge a truly transformative technology for modern wastewater treatment.

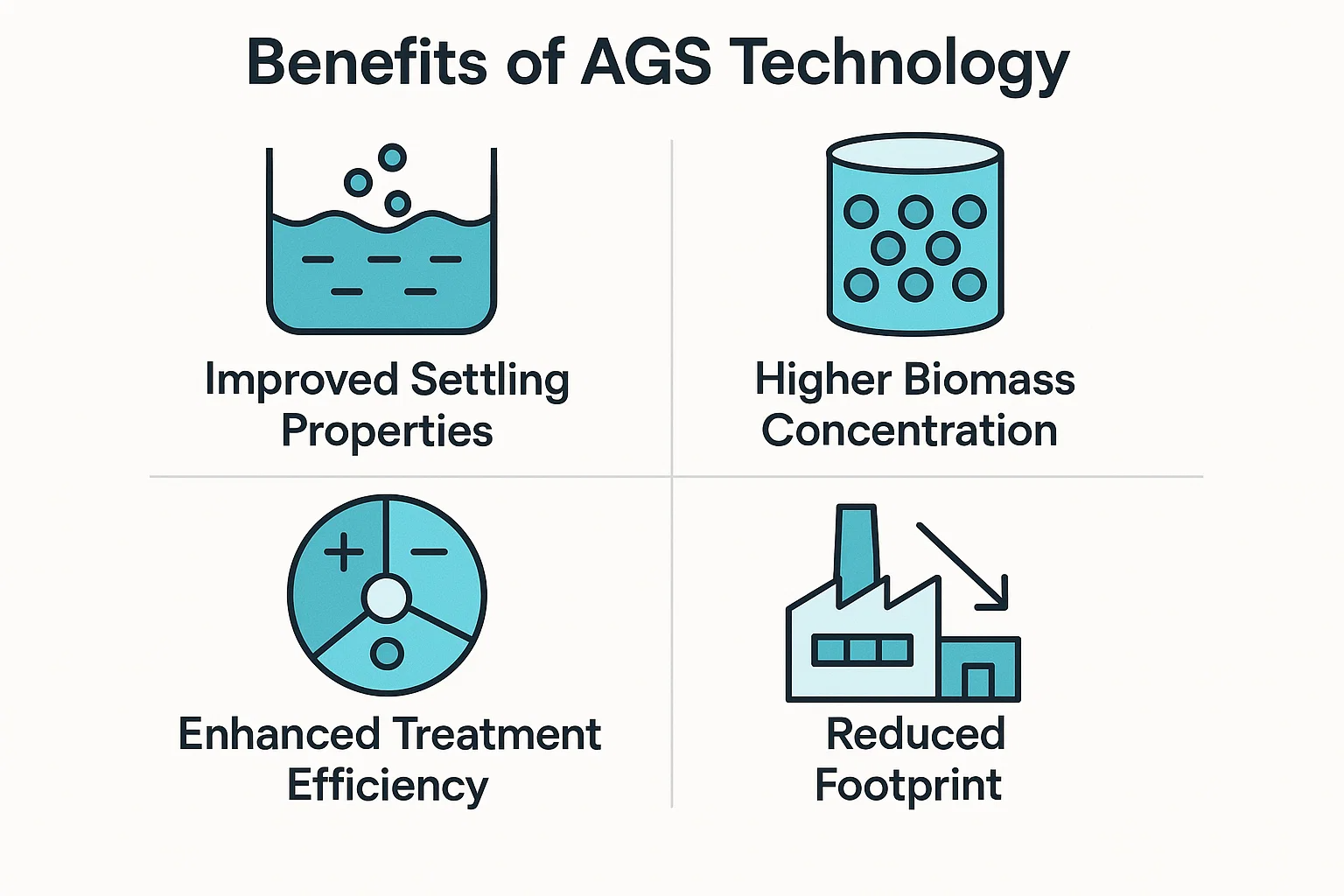

The unique characteristics of Aerobic Granular Sludge translate into a wide range of operational, environmental, and economic benefits, making it a highly attractive solution for modern wastewater treatment challenges.
AGS is renowned for its exceptional settling velocity, which is significantly faster than that of conventional activated sludge floc. The dense, compact nature of the granules allows them to settle rapidly, typically in just 3 to 5 minutes. This rapid settling time is a major operational advantage, as it enables a much shorter overall SBR cycle time and ensures a clear, high-quality effluent.
Due to their compact structure, AGS reactors can sustain a much higher biomass concentration per unit volume compared to conventional systems. This higher concentration, often exceeding 10 g/L, allows the reactor to handle significantly higher organic and nutrient loading rates, making the process more robust and efficient. The increased biomass also enhances the system's ability to treat strong wastewater streams.
The simultaneous occurrence of aerobic, anoxic, and anaerobic processes within a single granule allows for the highly efficient removal of a wide range of pollutants, including chemical oxygen demand (COD), biological oxygen demand (BOD), nitrogen, and phosphorus. This multi-zone functionality in a single reactor simplifies the treatment process and reduces the need for multiple tanks and complex piping, thereby increasing overall treatment efficiency.
The ability to achieve high biomass concentrations and high treatment efficiency in a single reactor means that AGS plants require a much smaller physical footprint than conventional systems. For new construction, this translates to significant land savings, while for existing plants, it allows for a substantial increase in treatment capacity without needing to expand the facility's physical size.
AGS systems typically generate less excess sludge compared to conventional activated sludge processes. This is partly due to the high biomass retention time and the unique microbial communities that form within the granules. Lower sludge production reduces the costs and logistical challenges associated with sludge dewatering, handling, and disposal, which can be a major operational expense for wastewater treatment plants.
As discussed in the previous section, the layered structure of the AGS granules facilitates simultaneous nitrification-denitrification and enhanced biological phosphorus removal in a single reactor. This eliminates the need for separate zones or tanks dedicated to each process, simplifying the overall plant design, reducing energy consumption, and lowering operational complexity.

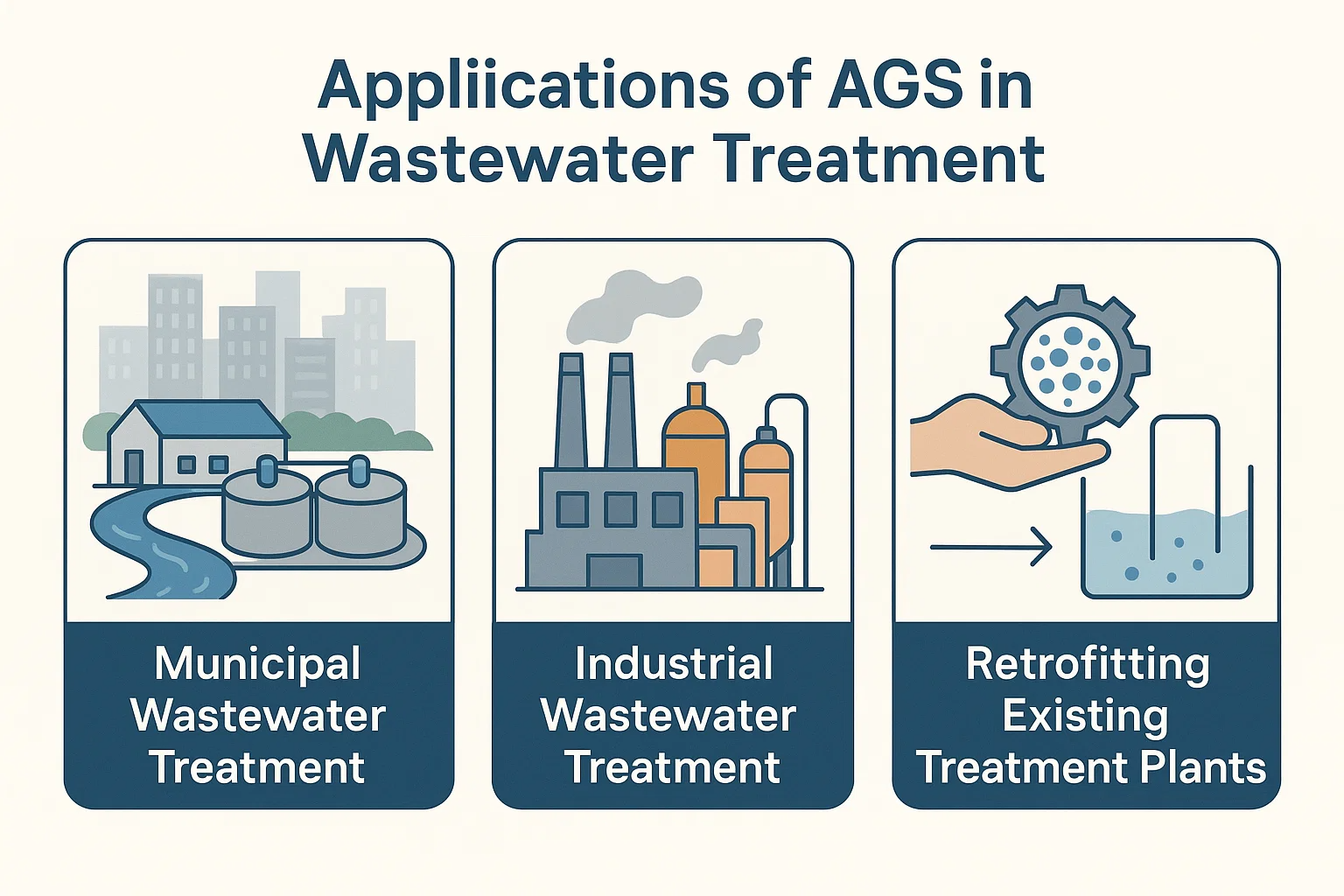

The superior performance and operational advantages of Aerobic Granular Sludge have made it a versatile and increasingly popular choice for treating a wide range of wastewater types, from municipal sewage to complex industrial effluents.
AGS technology is a highly effective solution for treating municipal wastewater. Its ability to simultaneously remove organic matter, nitrogen, and phosphorus in a compact footprint makes it ideal for urban areas where land is scarce and population density is high. Many cities are adopting AGS not only for new plant construction but also for retrofitting and upgrading older facilities to meet stricter effluent regulations without costly physical expansion.
The robustness of AGS makes it particularly well-suited for the challenges of industrial wastewater. Its ability to handle high organic loads and fluctuating flow rates is a significant advantage over conventional systems, which can be easily disrupted by the variable nature of industrial effluents.
Food and Beverage Industry: Wastewater from this sector is typically high in biodegradable organic matter (BOD/COD). AGS reactors can efficiently treat this wastewater while also handling variations in production schedules and stream composition, which is common in food processing.
Chemical Industry: The compact design and high biomass concentration of AGS systems are beneficial for treating wastewater from chemical plants. The higher biomass density provides a more stable and resilient microbial community that can better handle complex and potentially inhibitory compounds.
Pharmaceutical Industry: Wastewater from pharmaceutical manufacturing can contain difficult-to-treat and sometimes toxic compounds. Research has shown that the microbial diversity within AGS granules can be adapted to biodegrade these specific pollutants, making it a promising technology for this sector.
One of the most compelling applications of AGS is in retrofitting conventional activated sludge plants. By converting an existing basin into an AGS-SBR, a plant can significantly increase its treatment capacity and improve its nutrient removal capabilities without the need for additional land or major civil works. This is a cost-effective way for municipalities and industries to comply with more stringent environmental regulations.
Beyond pollutant removal, AGS technology holds potential for resource recovery. The process can be optimized to produce excess biomass that is rich in polyphosphate, which can be recovered as a slow-release fertilizer. Additionally, the granules themselves have a high potential for capturing valuable resources from wastewater, such as alginate-like exopolymers and certain metals. This aligns with the global shift toward a circular economy in water management.
While Aerobic Granular Sludge technology offers significant advantages, its successful implementation and long-term stability depend on careful operational control. Operators must manage key parameters to promote granulation and maintain the health of the microbial community.
The most common reactor configuration for AGS is the Sequencing Batch Reactor (SBR). SBR design is critical, as it must facilitate the specific phases of the AGS cycle: rapid filling, effective aeration and mixing, quick settling, and clean decanting. The reactor should be designed to handle the high biomass concentrations without creating dead zones. Proper aeration systems (e.g., fine-bubble diffusers) are essential for providing the oxygen gradient necessary for the layered structure of the granules.
Starting up an AGS plant requires a specific approach to promote granulation. The process can begin by seeding the reactor with conventional activated sludge, which serves as the initial biomass. The key to successful granulation is applying selective pressure from the beginning. This involves operating the SBR with a very short settling time (e.g., 3-5 minutes) and a high superficial air velocity. This "feast and famine" strategy washes out slow-settling flocculent sludge and encourages the rapid growth of dense, granular biomass. The granulation process can take several weeks or even months to become fully established.
Aeration is a dual-purpose process in AGS: it provides dissolved oxygen for aerobic metabolism and a hydrodynamic shear force that helps maintain the compact structure of the granules. High superficial air velocities prevent the granules from becoming too large and breaking apart. Proper mixing is also vital to ensure that wastewater comes into contact with the biomass, preventing localized nutrient depletion and maintaining a uniform environment throughout the reactor.
AGS systems produce less excess sludge than conventional plants, but sludge wastage is still a critical operational task. Operators must periodically waste a portion of the sludge to control the sludge retention time (SRT). The SRT directly influences the microbial community and the performance of the plant. A longer SRT favors slow-growing nitrifying bacteria and can improve overall stability, while a shorter SRT can be used to select for fast-growing heterotrophs.
Effective monitoring is essential for process stability. Key parameters to track include:
Settling Velocity: A quick and easy indicator of granule health. A decreasing settling velocity may signal granulation issues.
Dissolved Oxygen (DO): Monitored in real-time to optimize aeration and energy consumption.
pH and Alkalinity: Crucial for the stability of nitrification and denitrification processes.
Nutrient Concentrations: Regular analysis of ammonia, nitrate, and phosphorus levels in the effluent ensures treatment targets are being met.
Microscopic Analysis: Periodic examination of the granules under a microscope can provide valuable insight into their structure, health, and microbial composition.
Despite its many advantages, Aerobic Granular Sludge technology faces several challenges that can affect its performance and widespread adoption. Understanding these limitations is crucial for successful implementation and operation.
One of the primary challenges is the stability and maintenance of the granules themselves. Granules can sometimes lose their compact structure and revert to a less efficient flocculent state, a phenomenon known as de-granulation. This can be caused by various factors, including:
Inadequate Selective Pressure: Insufficiently short settling times or a lack of proper shear force.
Operational Shifts: Sudden changes in organic loading rates, pH, or temperature.
Presence of Floc-Forming Microorganisms: The proliferation of filamentous bacteria can disrupt the granule structure.
De-granulation leads to poor settling, reduced treatment efficiency, and potential washout of biomass, requiring corrective action to re-establish the granules.
While generally robust, AGS systems can be sensitive to sudden slugs of toxic or inhibitory compounds. The dense microbial community within the granules can be negatively affected by high concentrations of heavy metals, chlorinated hydrocarbons, or other toxic substances. This is a particular concern for industrial wastewater applications where spills or operational upsets can occur. Proper monitoring and a robust pre-treatment strategy are often necessary to mitigate this risk.
The stability of the AGS process can be a concern, particularly during the initial startup phase or following a shock load. Maintaining the delicate balance of microbial communities and physical conditions within the reactor is essential. If the operational parameters (e.g., aeration, mixing, settling time) are not carefully controlled, the process can become unstable, leading to a decline in effluent quality.
Moving from laboratory-scale experiments to full-scale commercial applications has presented unique challenges. Factors such as hydraulic conditions, mixing patterns, and aeration uniformity become more complex in large-scale reactors. Ensuring that the high-performance lab results can be replicated consistently at a municipal or industrial scale requires sophisticated engineering design and process modeling.
While AGS can offer long-term cost savings through reduced land footprint and lower sludge disposal costs, the initial capital expenditure for a new plant can be higher than for some conventional systems. The design and construction of specialized SBRs and the implementation of advanced control systems can contribute to a higher upfront investment. However, these costs are often offset by lower operational expenses and improved performance over the life of the plant.
To understand the real-world impact of Aerobic Granular Sludge technology, it is helpful to examine successful implementations. These examples demonstrate how the benefits of AGS translate into practical, large-scale solutions.
A notable case study is the full-scale implementation of an AGS system at a municipal wastewater treatment plant. Facing increasingly strict nutrient discharge limits and a growing population, the plant needed to upgrade its treatment capacity without acquiring more land. By retrofitting an existing activated sludge basin into an AGS-SBR, the facility was able to increase its treatment capacity by over 50% within the same footprint. . The new system consistently achieved high-quality effluent, with total nitrogen and phosphorus concentrations well below regulatory limits. The plant also reported significant energy savings due to a more efficient aeration strategy and a substantial reduction in the amount of sludge produced, leading to lower sludge disposal costs.
In an industrial application, a food and beverage processing plant adopted AGS technology to treat its high-strength wastewater. The plant's conventional system struggled with variable flow rates and high organic loads, often leading to performance instability. The implementation of an AGS reactor provided a robust solution. The high biomass concentration and excellent settling properties of the granules allowed the system to handle significant fluctuations in COD and BOD loading without compromising effluent quality. The compact footprint of the AGS reactor enabled the company to expand its production capacity without needing to build an entirely new treatment facility. The consistent and reliable treatment performance also reduced the risk of non-compliance and associated fines.
Researchers are exploring hybrid systems that combine AGS with other advanced technologies to address specific wastewater challenges. For example, integrating AGS with membrane bioreactors (MBRs) could create a granular sludge-MBR hybrid system, which would combine the high biomass concentration of AGS with the superior effluent quality of MBRs. Similarly, combining AGS with anaerobic technologies could optimize both energy recovery and nutrient removal.
The next generation of AGS systems will be more intelligent. The use of real-time sensors, advanced data analytics, and artificial intelligence (AI) will enable more precise process control. AI algorithms can analyze incoming wastewater characteristics and optimize operational parameters (e.g., aeration, mixing, cycle times) in real-time, ensuring maximum efficiency and stability while minimizing energy consumption.
Computational modeling and simulation are becoming increasingly important tools for AGS research. These models can predict the behavior of granules under different conditions, helping engineers and researchers to optimize reactor design, predict performance under various loading scenarios, and troubleshoot potential issues before they occur. This reduces the need for costly and time-consuming pilot-scale experiments.
Future research will likely focus on several key areas:
Microbial Ecology: A deeper understanding of the microbial communities within the granules to improve their stability and specialized functions.
Resource Recovery: Optimizing the process to recover valuable resources such as biopolymers, metals, and nutrients (e.g., phosphorus) from wastewater.
Treatment of Recalcitrant Compounds: Enhancing the ability of AGS to degrade complex or toxic compounds found in industrial wastewater.
Aerobic Granular Sludge represents a significant leap forward in wastewater treatment technology. It moves beyond the limitations of conventional activated sludge by leveraging the natural ability of microorganisms to form dense, efficient aggregates.
The key advantages—a compact footprint, higher treatment efficiency, excellent settling properties, and simultaneous nutrient removal—make it a compelling solution for both new and existing treatment plants. While challenges such as process stability and scale-up require careful management, ongoing research and successful case studies demonstrate that AGS is a robust and viable technology.
