MBBR vs. CAS: The Definitive Showdown for Modern Wastewater Treatment

Introduction

As our cities grow and environmental regulations tighten, the choice of a wastewater treatment system isn't just a technical decision—it's an economic and logistical imperative. Facilities today must grapple with balancing high-efficiency contaminant removal, limited physical space, escalating energy costs, and the need for operational simplicity.

For decades, the undisputed champion of large-scale wastewater cleaning has been the Conventional Activated Sludge (CAS) process—the reliable workhorse. However, in recent years, a highly efficient, space-saving contender has risen to prominence: the Moving Bed Biofilm Reactor (MBBR).

MBBR represents the space-saving, high-efficiency future, while CAS remains the tried-and-true workhorse.

What is MBBR?

Defining the Innovator

MBBR, or Moving Bed Biofilm Reactor, is an advanced, high-rate biological wastewater treatment technology. Its primary goal is to use the concept of a protected, dense biological film to maximize treatment capacity within a minimal volume.

MBBR achieves this efficiency by utilizing specialized, small plastic pieces—known as biofilm carriers or media—that are designed to float and circulate freely within an aeration tank.

 Biofilm carriers or media pitcure:

The MBBR Process: The Biofilm Advantage

Think of the biofilm carriers as micro-hotels for beneficial bacteria. These carriers are engineered with a very high surface area-to-volume ratio, offering a protected, ideal environment for microbial colonies (thebiofilm) to thrive and grow.

1. Media Installation: Thousands of these small carriers (often shaped like wheels or tiny stars) are added to the aeration tank, typically filling between 50% and 70% of the tank volume.

2. Aeration and Mixing: Air supplied from blowers serves a dual purpose: it provides the oxygen necessary for the bacteria to consume the organic pollutants (BOD and ammonia), and it creates the turbulent mixing required to keep the carriers circulating throughout the tank.

3. Treatment: As the wastewater passes through the tank, the pollutants diffuse into the biofilm layer on the carriers, where they are metabolized by the bacteria. Since the biomass is physically attached to the carriers, the system is less prone to biomass washout than traditional methods.

4. Separation: A sieve or screen at the outlet of the reactor retains the media within the tank, allowing only the treated water and sloughed-off solids to proceed to a final clarifier or filtration step.

Advantages of MBBR:

• Small Footprint: This is the most significant selling point. Because the biofilm concentration on the carriers is extremely high, MBBR can achieve the same level of treatment as CAS in a reactor that is often 50% smaller, making it perfect for urban areas or sites with limited land.

• Resistance to Shock Loads: The protected nature of the biofilm provides a robust shield against sudden spikes in pollutant concentration or flow rate, ensuring a much faster recovery than CAS.

• Simple Operation: Unlike CAS, there is no need to monitor and manage the sensitive Return Activated Sludge (RAS) ratio. The system requires less "babysitting" as the biofilm manages its own growth and sloughing.

• High Treatment Efficiency: Excellent for nitrification (Nitrogen removal) because the longsolids retention time(SRT) of the protected biofilm allows slow-growing nitrifying bacteria to thrive.

Disadvantages of MBBR:

• Carrier Cost: The initial purchase and installation of the specialized plastic carriers represent a significant upfront capital expenditure.

• Media Wear and Tear: Over time, the media can experience minor attrition, though modern designs minimize this. There is a need for robust screens to prevent carrier loss from the system.

• Potential for Clogging: While rare, poorly designed aeration or coarse screening can lead to media clumping, potentially reducing treatment efficiency.

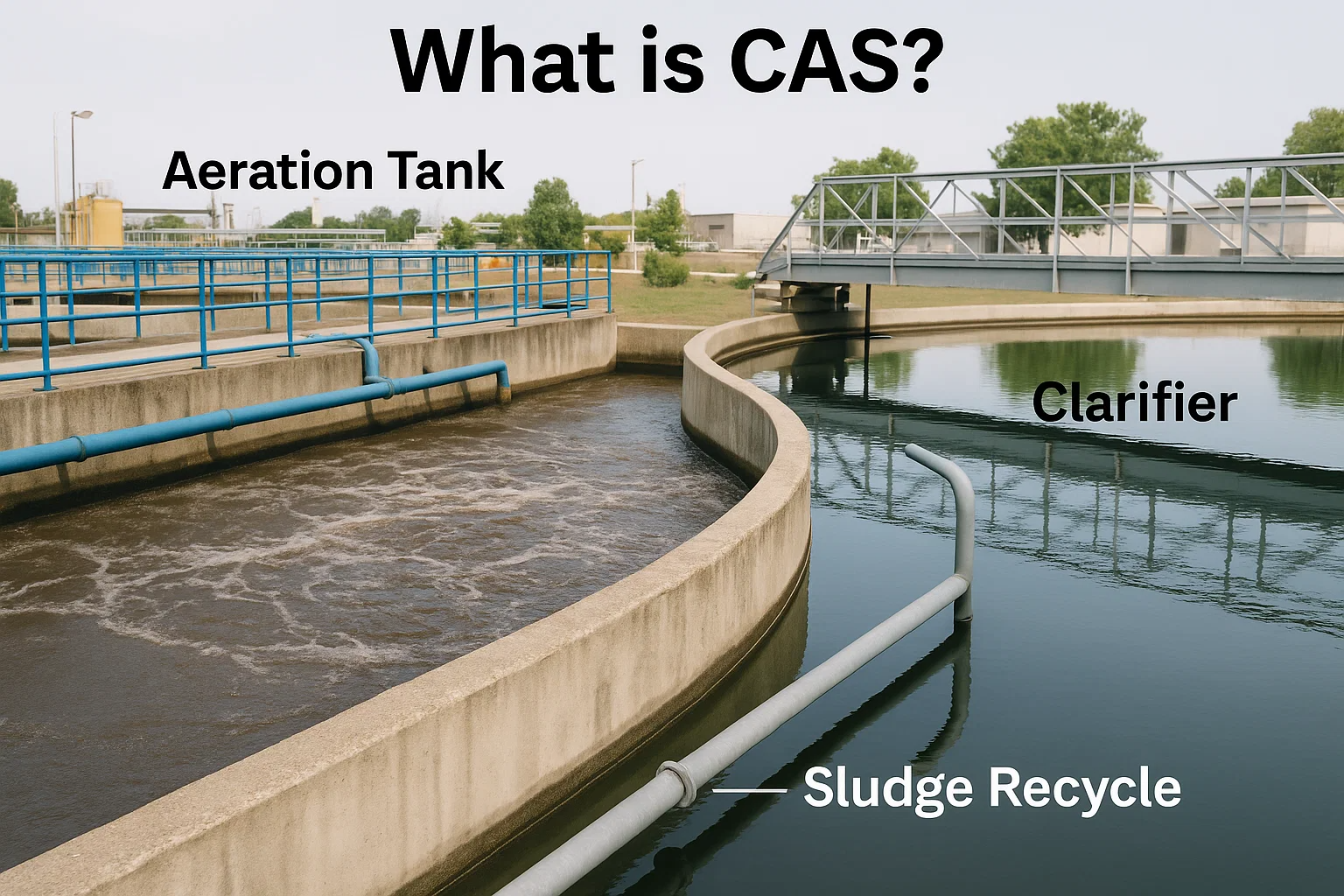

What is CAS?

Defining the Workhorse

Conventional Activated Sludge (CAS) is the oldest, most common, and arguably the most reliable biological wastewater treatment process used worldwide. It is the gold standard against which most new technologies are measured. Unlike MBBR, CAS relies entirely on maintaining a flocculent biomass—a delicate mixture of water and suspended microbes—to achieve treatment.

The CAS Process: The Mixer-Settler Model

CAS is a simple, effective mixer-settler model that creates the perfect conditions for microorganisms to eat pollutants, and then separates those microorganisms from the clean water.

1. Aeration Tank (Mixing): Raw wastewater is mixed in a large tank with the activated sludge (the concentrated microbial mass). Air is aggressively pumped into the tank, providing the necessary oxygen for the microbes to metabolize the BOD (Biochemical Oxygen Demand) and other contaminants.

2. Clarifier (Settling): The mixed liquor flows into a large, quiescent secondary settling tank (clarifier). Here, the microbes (sludge) flocculate (clump together) and settle out due of gravity, leaving behind clear, treated water.

3. Sludge Recycle (The Crux of Control): The settled sludge is crucial. A portion is continuously pumped back into the aeration tank—this is the Return Activated Sludge (RAS). This recycling ensures a high concentration of active, hungry microbes are always available to treat the incoming flow. The excess sludge is removed and sent for disposal.

The efficiency of CAS relies heavily on maintaining a precise Sludge Age and F/M Ratio (Food-to-Microorganism ratio), making it a highly sensitive operational process.

Advantages of CAS:

• Well-Established Technology: Decades of operational experience means the process is universally understood, and most operators are highly familiar with its monitoring and control requirements.

• Relatively Low Capital Cost: Because it relies on basic concrete tanks and readily available aeration equipment, the initial construction cost for the basic CAS reactor is often lower than MBBR, which requires specialized carriers.

• Good Removal of BOD and TSS: When operating under optimal conditions, CAS provides highly effective removal of both organic carbon and suspended solids.

• Flexibility in Nutrient Removal: CAS can be easily modified (e.g., adding anaerobic or anoxic zones) to achieve stringent Nitrogen and Phosphorus removal requirements.

Disadvantages of CAS:

• Large Footprint: CAS requires substantially more space than MBBR due to the need for a large aeration tank to maintain sufficient microbial concentration and, critically, a very large secondary clarifier to ensure proper sludge settling.

• Sensitive to Shock Loads: This is its main weakness. A sudden toxic discharge, temperature change, or hydraulic surge can "wash out" the fragile activated sludge floc, leading to poor settling, loss of biomass, and a recovery time that can stretch from days to weeks.

• Sludge Production and Management: CAS produces a large volume of excess sludge that must be dewatered, treated, and disposed of. This accounts for a major portion of the operating cost.

• Requires Skilled Operators: The process is highly sensitive to the sludge quality. It demands constant monitoring and sophisticated control of the RAS, wasting rates, and F/M ratio by experienced personnel.

MBBR vs. CAS: Key Differences

While both MBBR and CAS effectively clean water, their core mechanisms lead to dramatic differences in performance, footprint, and cost. This is where the choice between the two technologies becomes crystal clear based on your project priorities.

Operational Complexity: Less "Babysitting" vs. Constant Control

The difference in operational complexity is one of the most compelling reasons to choose MBBR, especially for smaller plants or those with fewer skilled operators.

• CAS Demands Precision: CAS is a living system that requires constant monitoring of the Sludge Volume Index (SVI), Mixed Liquor Suspended Solids (MLSS), and precise Return Activated Sludge (RAS) pumping rates to keep the floc healthy and settling properly. It's a delicate balancing act.

• MBBR Simplifies Life: In an MBBR system, the biological mass is physically secured to the carriers. You simply manage the aeration for mixing and oxygen supply. The system is far more forgiving, dramatically reducing the need for daily, complex sludge management. This results in lower labor costs and less technical expertise required on-site.

The Land Equation: Footprint vs. Capital

When making the final cost calculation, you must look beyond the initial purchase price:

1. If land is expensive or unavailable (e.g., urban retrofit): The cost of carriers for MBBR is quickly justified by the avoided cost of land acquisition or the impossibility of building large CAS tanks.

2. If land is cheap and abundant (e.g., rural municipality): The lower capital cost of CAS tanks often makes it the preferred financial choice, provided the wastewater flow is stable.

Applications of MBBR and CAS

The suitability of MBBR versus CAS is often determined by the environment, the nature of the wastewater, and the project's long-term goals. Here is a breakdown of where each technology truly shines.

Suitable Applications for MBBR (The Space Saver & Problem Solver)

MBBR is positioned as the ideal solution when constraints—whether physical, logistical, or performance-related—dominate the project scope.

• Retrofitting Existing Plants: This is arguably the most common and cost-effective application for MBBR. An existing, overloaded CAS plant can dramatically increase its capacity and performance (especially for nitrification) simply by adding carriers to its existing aeration basin. This avoids the massive cost and disruption of new tank construction (often referred to as an IFAS – Integrated Fixed-film Activated Sludge, when combined with activated sludge).

• Industrial Wastewater Treatment: Industries often have highly variable flows, fluctuating chemical compositions, and wastewater that can be toxic to sensitive suspended sludge. MBBR’s resilience to shock loads makes it the go-to choice for sectors like food and beverage, pulp and paper, and chemical manufacturing.

• Small Communities and Decentralized Systems: For small towns, resorts, or remote mining sites, the simple operation and compact nature of MBBR are huge assets. They require less land and less complex daily operational labor than a CAS facility.

• Pre-treatment or Capacity Enhancement: MBBR is often used as a robust first stage to handle the bulk of the BOD removal, leaving a less demanding task for the final polishing step (MBBR is the perfect precursor for denitrification).

Suitable Applications for CAS (The Reliable Workhorse)

CAS remains the dominant choice when reliability, low initial cost, and conventional management are the priorities.

• Large Municipal Wastewater Treatment Plants: For major metropolitan areas with large, stable, high-volume flows and where land was historically secured, CAS is still the standard. The lower initial capital expenditure and the familiarity of the process management make it a safer, well-vetted option.

• Where Land Availability is Not a Constraint: If a plant can easily expand its footprint (e.g., in rural or sprawling industrial parks), the economic advantage of the lower initial build cost of CAS often outweighs the operational efficiency of MBBR.

• Specific Nutrient Removal Requirements: While MBBR is excellent for nitrification, complex, multi-stage CAS variants (like the $\text{A/O}$ or $\text{A2O}$ process) are often implemented when the priority is stringent, dedicated Biological Phosphorus Removal and overall nutrient control. The tight operational control of CAS can sometimes lend itself better to these specific modifications.
