In the complex world of modern wastewater treatment, two biological processes stand out for their efficiency and compact design: the Moving Bed Biofilm Reactor (MBBR) and the Integrated Fixed-Film Activated Sludge (IFAS).
MBBR and IFAS represent a significant evolution from conventional methods like the activated sludge process. They both utilize the power of biofilm, a community of microorganisms that attach to a solid surface, to break down pollutants in wastewater. However, the way they integrate this biofilm into the treatment process is fundamentally different, leading to distinct advantages, disadvantages, and ideal applications.
The Moving Bed Biofilm Reactor (MBBR) is a biological wastewater treatment process that uses a special type of carrier media to grow and sustain microorganisms. . Unlike conventional systems where microorganisms are suspended in the water, in MBBR, they form a biofilm on the surface of small, free-floating plastic carriers. These carriers, which look like small plastic chips or rings, are kept in constant motion within the reactor by an aeration system or a mechanical mixer.
The process is essentially a "biofilm hotel." The wastewater flows through the reactor, and as it comes into contact with the biofilm-covered carriers, the microorganisms consume and break down pollutants like organic matter (BOD/COD) and nitrogen compounds. A screen or sieve at the outlet keeps the carriers inside the tank while allowing the treated water to exit. This fixed-film approach allows for a very high concentration of active biomass, leading to a much more compact and efficient system.
High Treatment Capacity: The large surface area provided by the carriers allows for a high concentration of biomass, which significantly boosts treatment efficiency.
Small Footprint: Because of its high efficiency, an MBBR system requires less space than traditional activated sludge systems.
Stable and Robust: The attached biofilm is more resilient to toxic shocks, pH changes, and fluctuations in wastewater flow or composition.
Easy to Operate: MBBR systems don't require sludge recirculation or return lines, simplifying operation and maintenance.
Carrier Media Loss: There's a risk of media escaping the tank if the retaining screens are damaged or improperly designed.
Can Be Sensitive to Certain Toxins: While generally robust, a sudden, high concentration of a toxin can still impact the biofilm.

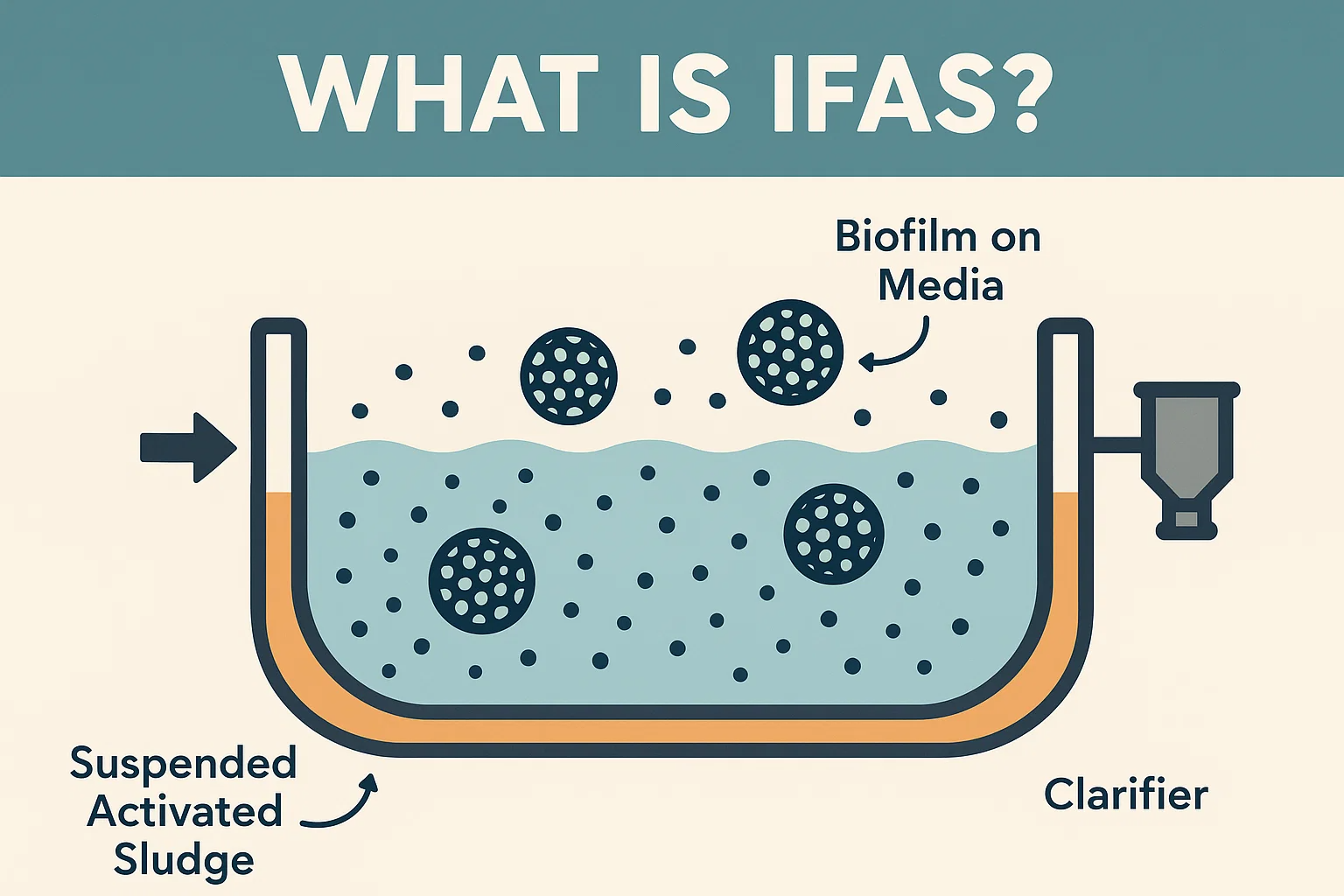

The Integrated Fixed-Film Activated Sludge (IFAS) process is a hybrid technology that combines the best of two worlds: the conventional activated sludge process and the fixed-film process. In an IFAS system, a conventional activated sludge tank is filled with a submerged media, similar to what is used in MBBR. . This media provides additional surface area for the growth of a second, attached biofilm, while the activated sludge remains in suspension.
Think of it as a dual-action system. The suspended activated sludge performs the primary biological treatment, while the biofilm on the media handles additional treatment and acts as a buffer. This combination allows for a much higher total biomass concentration within the same tank volume. The result is a more efficient system that can handle higher organic loads and is particularly effective for nutrient removal, such as denitrification and nitrification.
Enhanced Treatment Performance: The added biomass from the biofilm significantly improves the system's ability to remove BOD, COD, and nutrients.
Improved Settling Characteristics: The presence of the media often helps to create a more stable and less "slimy" sludge, which settles better in the clarifier.
Increased Biomass Concentration: IFAS allows for a higher total biomass, which is beneficial for handling variable loads and for achieving better effluent quality.
More Complex: The system requires managing both the suspended activated sludge and the attached biofilm, which is more complex than a standalone MBBR.
Higher Initial Cost: The initial investment can be higher than a simple MBBR due to the need for a clarifier and sludge handling equipment.
Potential for Filamentous Bacteria Growth: Since it still relies on a suspended sludge component, IFAS can be susceptible to the same sludge bulking issues caused by filamentous bacteria as conventional activated sludge.
While both MBBR and IFAS use biofilm on carrier media to enhance wastewater treatment, their core designs and operational characteristics lead to significant differences. This table provides a quick overview of the key distinctions.
| Feature | MBBR (Moving Bed Biofilm Reactor) | IFAS (Integrated Fixed-Film Activated Sludge) |
| Treatment Process | Biofilm-only system. Microorganisms grow exclusively on free-floating carriers. | Hybrid system. Combines a suspended activated sludge with a fixed biofilm on submerged media. |
| Biomass Concentration | High fixed biomass concentration on carriers. | Very high total biomass concentration (suspended + fixed). |
| Footprint | Typically smaller, as it handles high loads in a compact tank. | Can be smaller than conventional activated sludge, but generally larger than an MBBR for the same flow. |
| Operational Complexity | Relatively simple, no need for sludge return or clarifiers. | More complex, requires managing both sludge and biofilm; includes a clarifier and sludge recirculation. |
| Cost | Lower capital cost, especially for retrofitting. Operational costs are also generally lower. | Higher initial capital cost due to the need for a clarifier, blowers, and pumps. Operational costs are also generally higher. |
The primary difference lies in the biological mechanism. MBBR is a biofilm-only system. The entire treatment process occurs on the surface of the carriers. This makes it a very robust and stable process, as the biofilm is not easily washed out and is more resistant to shocks.
IFAS is a hybrid process. The suspended activated sludge performs the bulk of the organic matter removal (BOD/COD), while the biofilm on the media provides an additional, stable biomass for nitrification and other specialized treatment needs. This dual-action approach allows IFAS to handle higher organic loads and achieve better nutrient removal than activated sludge alone.
Both systems boast a high biomass concentration, which is the key to their efficiency. However, they achieve it differently. MBBR's biomass is entirely attached to the media, allowing for an incredibly dense and active population of microorganisms. IFAS, on the other hand, benefits from a combined biomass: the suspended sludge and the attached biofilm. This often results in an even higher total biomass concentration, making it exceptionally effective for plants requiring high-level treatment.
In an MBBR system, the carrier media is an independent, free-floating element that is designed for maximum efficiency and stability.
Design and Material: MBBR carriers are typically small, lightweight plastic pieces made from high-density polyethylene (HDPE) or similar materials. Their most important feature is their high specific surface area (SSA), which is the total surface area available for biofilm growth per unit volume of the media. The intricate design, featuring internal fins, spokes, or compartments, significantly increases this surface area, allowing a large number of microorganisms to attach and thrive.
Role and Function: The primary role of the media is to provide a protected, stable environment for the biofilm. As the carriers are constantly moving within the reactor, they collide with each other and the tank walls, which sloughs off excess or dead biofilm. This "self-cleaning" mechanism ensures that the biofilm remains thin and healthy, allowing for optimal mass transfer of oxygen and nutrients to the microorganisms. The design also protects the biofilm from the high shear forces of aeration, making the system highly resilient. The carriers are retained in the tank by a sieve or screen at the outlet.
In an IFAS system, the carrier media acts as a supplementary element within a conventional activated sludge process. Its role is to boost the system's capacity without increasing the tank size。
Design and Material: IFAS media is often similar in shape and material to MBBR media, but it is typically contained within fixed or suspended cages within the tank. The media provides a large surface area for the attached-growth biofilm. The design can be tailored to the specific application, such as having a more open structure to allow for better interaction with the suspended sludge.
Role and Function: The main purpose of the IFAS media is to provide a stable platform for specialized biomass, particularly nitrifying bacteria. These bacteria grow more slowly than the heterotrophic bacteria that remove BOD/COD. In a conventional activated sludge system, these nitrifiers can be washed out, especially during high flow conditions. By providing a fixed surface, the IFAS media ensures that the nitrifying bacteria remain in the system, guaranteeing reliable nutrient removal even under varying loads. The suspended activated sludge and the fixed biofilm work in synergy, with the sludge handling the bulk of the organic load and the biofilm focusing on more complex processes like nitrification.
MBBR is known for its simplicity. It's often a "flow-through" system that doesn't require a clarifier or sludge recirculation, which simplifies operation and reduces energy costs. This makes it a cost-effective solution, especially for upgrading existing tanks.
IFAS is more complex because it maintains the core components of the activated sludge process, including the need for a secondary clarifier and return activated sludge (RAS) pumping. While this complexity can increase initial capital costs and operational demands, it provides the flexibility and enhanced performance often required for strict effluent standards, particularly for nutrient removal.
The choice between MBBR and IFAS often comes down to the specific application and project goals. While both are highly versatile, each technology has a set of ideal use cases where its strengths are best leveraged.
MBBR technology is particularly well-suited for scenarios where space is limited, or a simple, robust process is required.
Industrial Wastewater Treatment: MBBRs are widely used to treat wastewater from industries like food and beverage, pulp and paper, and chemicals. Their ability to handle high organic loads and their resilience to flow fluctuations make them an excellent choice for industrial processes with varying discharge characteristics.
Municipal Wastewater Treatment: MBBRs are increasingly being used in municipal plants for carbon removal (BOD/COD) and nitrification processes. They can be installed as a pre-treatment step or as the main biological reactor, often replacing or supplementing conventional systems.
Retrofitting and Upgrading: One of the most common applications for MBBR is in upgrading existing wastewater treatment plants. By simply adding carriers to an existing activated sludge tank, plant capacity can be significantly increased without the need for additional tanks, making it a cost-effective solution for facilities facing stricter discharge limits or population growth.
IFAS technology excels in situations where a plant needs a significant boost in performance, particularly for nutrient removal, but cannot expand its physical footprint.
Nutrient Removal: This is arguably the strongest application for IFAS. The stable biomass on the media provides a reliable environment for nitrifying bacteria (which convert ammonia to nitrate) and denitrifying bacteria (which convert nitrate to nitrogen gas). This allows plants to consistently meet strict nitrogen and phosphorus limits.
Upgrading Existing Activated Sludge Systems: Similar to MBBR, IFAS is a perfect solution for upgrading existing activated sludge plants. By adding media to the aeration basins, the system's capacity can be expanded, improving effluent quality and allowing for higher flow rates without building new reactors. This is particularly valuable for aging infrastructure.
Combined Sewer Overflow (CSO) Treatment: IFAS systems can be designed to handle the high, sudden flows typical of CSOs, providing an effective and compact solution for treating these surges before discharge.
Choosing between MBBR and IFAS is not a one-size-fits-all decision. The optimal technology depends heavily on the specific characteristics and requirements of your project. Here are the key factors you must consider before making a final decision.
Pollutant Type and Concentration: The type and concentration of pollutants (e.g., BOD, COD, nitrogen, phosphorus) are a primary consideration.
MBBR is highly effective for applications with a focus on BOD and COD removal. It is also excellent for nitrification but may be less efficient for simultaneous nutrient removal than IFAS.
IFAS is the superior choice for projects that require enhanced nutrient removal (nitrogen and phosphorus), especially when dealing with low-carbon wastewater that makes it difficult for nitrifying bacteria to thrive.
Required Effluent Quality: This is perhaps the most important factor.
If your goal is to meet standard effluent limits for BOD and TSS with a focus on simple, robust operation, MBBR is a strong candidate.
If you need to meet stringent effluent standards for total nitrogen and total phosphorus, IFAS is often the more reliable and effective choice due to its dual-biomass system.
Footprint Constraints: The physical space available for the treatment plant can be a decisive factor.
MBBR systems generally have a smaller footprint than IFAS for the same treatment capacity, making them ideal for sites with limited space.
IFAS requires a larger footprint than MBBR because it still needs a secondary clarifier and other activated sludge components, although it is still more compact than a conventional activated sludge plant.
Initial vs. Operational Costs: Evaluate both the capital expenditure and the long-term operational costs.
MBBR systems often have a lower initial cost and simpler operation, which translates to lower operational costs (e.g., less power for pumping and no sludge handling).
IFAS has a higher initial cost due to its more complex infrastructure (clarifiers, return sludge pumps) and can have higher operational costs, but this may be offset by its superior performance.
Availability of Skilled Personnel: Consider the level of expertise required to operate and maintain the system.
MBBR is a relatively straightforward system to operate, making it a good fit for plants with limited staff or less experienced personnel.
IFAS requires a higher level of operational expertise to manage both the suspended sludge and the attached biofilm, including issues like filamentous growth and sludge settling.
MBBR is the ideal choice when simplicity, a small footprint, and robust performance are the top priorities. It's a highly efficient system for general BOD/COD removal and can be a cost-effective solution for upgrading a plant's capacity without complex modifications.
IFAS, on the other hand, is the go-to technology when enhanced performance, particularly for nutrient removal, is non-negotiable. Its hybrid design leverages the strengths of both activated sludge and fixed-film processes to achieve superior effluent quality, making it a powerful solution for plants with stringent environmental regulations.
