Sludge dewatering is a critical process in wastewater treatment and various industrial applications. It involves reducing the water content in sludge, transforming it from a liquid or semi-liquid state into a more manageable, solid "cake."
Among the various technologies available for this crucial task, screw presses and filter presses stand out as two of the most widely adopted and effective methods. While both aim to separate solids from liquids, their operational principles, efficiencies, and ideal applications differ significantly.
A screw press is a type of dewatering equipment that continuously separates liquids from solids through mechanical compression. It's renowned for its simplicity, robust design, and ability to handle various types of sludge with minimal operator intervention.
The working principle of a screw press is elegant in its continuous operation. Sludge, often conditioned with polymer to enhance flocculation (the clumping together of fine particles), is fed into the inlet of the press. Inside the main body, a slow-rotating screw (or auger) is housed within a cylindrical screen drum (sometimes referred to as a filter cylinder or basket).
As the screw rotates, it conveys the sludge forward. The unique design of the screw, often featuring a variable pitch or diameter, gradually decreases the volume available to the sludge as it moves from the inlet to the outlet. This reduction in volume, combined with the continuous rotation, generates increasing pressure on the sludge. Water is squeezed out through the fine openings of the surrounding screen, while the compressed solids are retained.
The dewatered solids, now in the form of a "cake," are discharged at the end of the screw via an adjustable back-pressure plate or cone, which helps to control the level of dewatering. The separated liquid, or filtrate, collects in a basin below the screen and is typically returned to the main wastewater treatment stream.
Key components of a screw press include:
Screw (Auger): The central rotating element responsible for conveying and compressing the sludge.
Screen/Filter Cylinder: A stationary cylindrical mesh or series of rings through which the water passes.
Drive Unit: Powers the slow rotation of the screw.
Sludge Inlet: Where the conditioned sludge enters the press.
Filtrate Outlet: Where the separated liquid exits.
Cake Discharge Port: Where the dewatered solids are expelled.
Common applications for screw presses include dewatering municipal wastewater sludge, sludge from food and beverage processing, pulp and paper mills, and various light industrial wastewater streams where continuous, moderate dewatering is required.

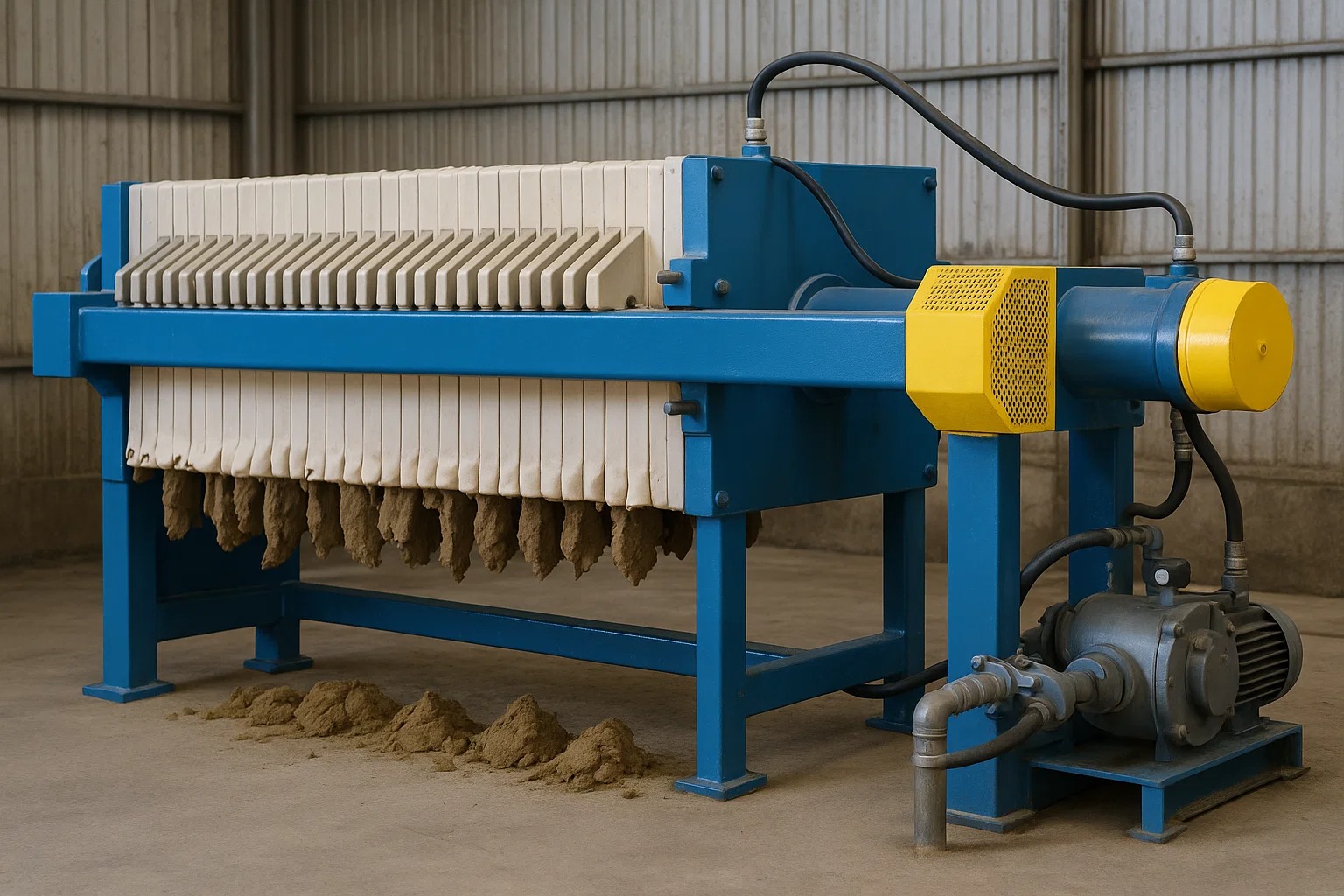

A filter press is a batch-operated dewatering machine that uses pressure filtration to separate solids from liquids. It's known for its ability to achieve very high cake solids content and handle challenging sludge types.
The working principle of a filter press revolves around forcing liquid through a filter medium under high pressure, leaving the solids behind. Unlike a continuous screw press, a filter press operates in cycles.
The core of a filter press consists of a series of vertical filter plates that are pressed together to form a sealed chamber. Each plate is typically recessed and covered with a filter cloth. These cloths are the primary filtration medium, allowing liquid to pass through while retaining solid particles. The entire assembly of plates is mounted within a sturdy frame, supported by sidebars.
A typical dewatering cycle begins with the plates being tightly closed together by a hydraulic cylinder. Sludge, often conditioned with polymer, is then pumped into the chambers formed between the plates under significant pressure. As the sludge fills these chambers, the liquid (filtrate) is forced through the filter cloths and exits the press through drainage channels within the plates. The solid particles are trapped on the surface of the filter cloths, gradually building up to form a filter cake within the chambers.
This process continues until the chambers are full of dewatered cake and the flow of filtrate significantly diminishes, indicating that the cake has reached its maximum dryness. Once filtration is complete, the feed pump is stopped, and the hydraulic cylinder retracts, causing the plates to separate. The dewatered filter cakes, now solid and often self-supporting, drop out from between the plates into a collection hopper or conveyor below. The filter cloths are then cleaned, and the press is ready for the next batch.
Key components of a filter press include:
Filter Plates: Recessed plates that form chambers for the sludge and provide support for the filter cloths.
Filter Cloths: The permeable fabric media that captures solids and allows liquid to pass.
Frame: The robust structure that holds the plates and hydraulic cylinder.
Hydraulic Cylinder: Provides the force to close and open the plates.
Feed Pump: Delivers the sludge into the press under pressure.
Manifolds/Piping: Channels for sludge inflow and filtrate outflow.
Common applications for filter presses are found in industrial wastewater treatment, mining (tailings dewatering), chemical processing, pharmaceuticals, and other industries where high dewatering efficiency, excellent filtrate quality, and the ability to handle a diverse range of challenging or fine-particle sludges are paramount.

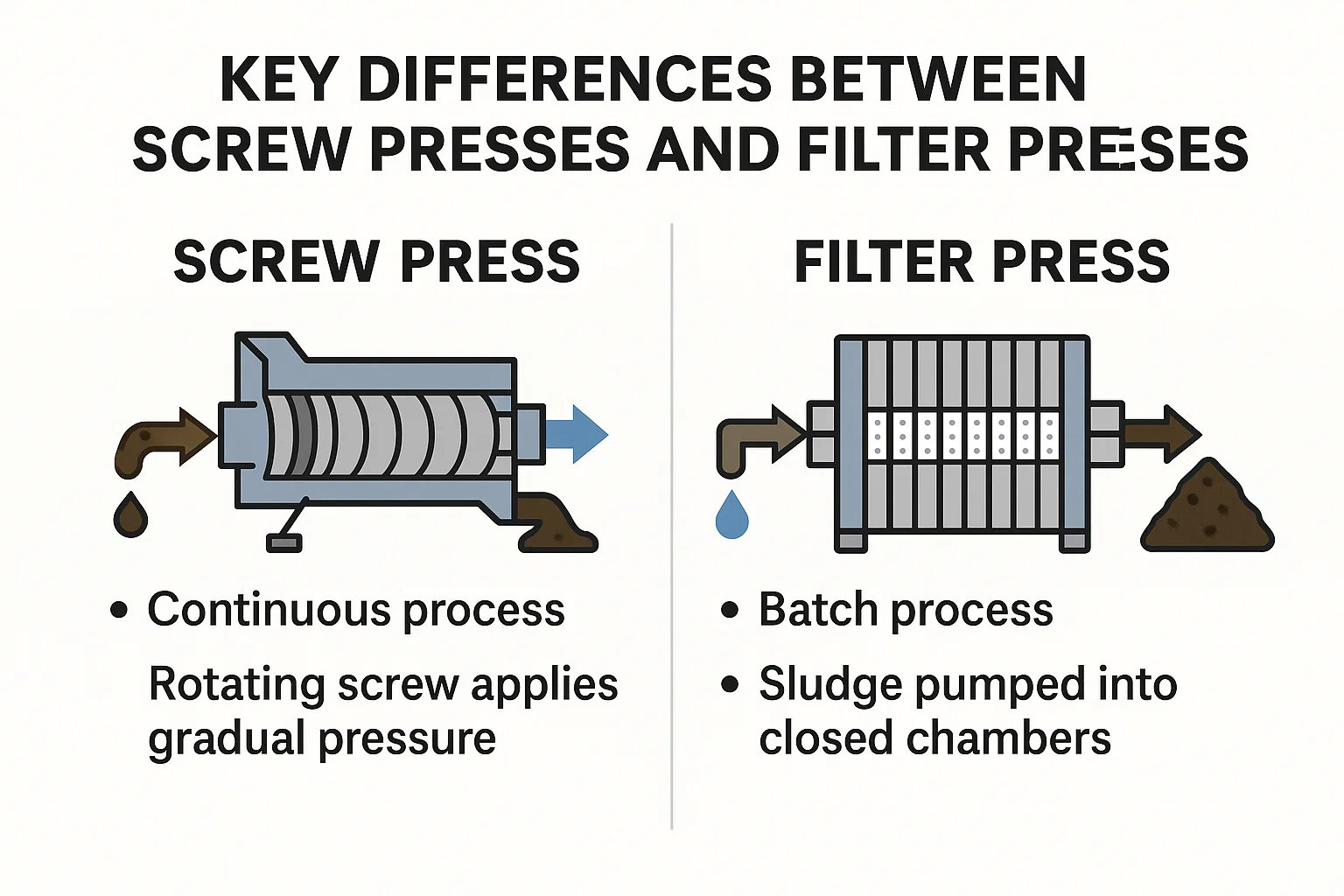

While both screw presses and filter presses are highly effective at dewatering sludge, their fundamental operational principles and performance characteristics diverge significantly. Understanding these differences is crucial for selecting the optimal technology for a given application.
Screw Press: Operates on a continuous process principle. Sludge is fed constantly into the press, and a rotating screw applies gradual, continuous pressure to compress the sludge. Water drains through a stationary screen, and dewatered cake is discharged continuously from the other end. This continuous flow makes it ideal for consistent sludge streams and automated operations.
Filter Press: Functions as a batch process. Sludge is pumped into a series of closed chambers, forcing water through filter cloths under high pressure. Once the chambers are filled with dewatered cake, the pumping stops, the plates are opened, and the cakes are discharged. This cycle-based operation means there are distinct loading, filtration, and discharge phases.
The nature of the sludge – its particle size, abrasiveness, compressibility, and solids content – plays a significant role in determining which technology is more suitable.
Screw Press: Generally performs well with biological sludges (e.g., municipal wastewater activated sludge), food processing sludges, and other medium-to-low consistency sludges with a more fibrous or compressible nature. They are less sensitive to variations in feed sludge consistency compared to filter presses. While they can handle some oily sludges, very high oil content can sometimes lead to blinding of the screens. They typically prefer feed solids concentrations in the range of 0.5% to 5%.
Filter Press: Highly versatile and capable of dewatering a much wider range of sludge types, including difficult-to-dewater industrial sludges, mineral slurries, and sludges with high fine particle content or abrasive characteristics. They can handle sludges with higher initial solids concentrations, and are particularly effective for sludges that form a good, incompressible cake structure. However, extremely sticky or highly oily sludges can lead to filter cloth blinding, requiring more frequent cleaning.
The dryness of the dewatered cake is a critical factor, directly impacting disposal costs and potential for reuse.
Screw Press: Typically achieves lower cake solids percentages, generally ranging from 15% to 25% (though some advanced designs can reach up to 30%). This is due to the continuous, lower-pressure compression mechanism. While the cake is solid and stackable, it retains a higher moisture content compared to a filter press cake.
Filter Press: Excels in producing very high cake solids percentages, often ranging from 30% to over 60% (and sometimes even higher for specific industrial sludges). The high filtration pressures and batch operation allow for more extensive dewatering, resulting in a drier, more compact cake that significantly reduces disposal volume and weight.
Screw Press: Offers continuous throughput, meaning it can process sludge consistently over long periods. Its capacity is typically measured in volume per hour (e.g., m³/hr or gallons/hour of sludge feed) and scales linearly with the size and number of units. They are often chosen for plants with a continuous, steady flow of sludge.
Filter Press: Processes sludge in batches, meaning its overall capacity is determined by the volume of sludge processed per cycle and the number of cycles per day. While individual filter presses can have very large capacities per batch, the intermittent nature means they are better suited for operations where sludge accumulation can be managed between cycles, or where multiple units can run in staggered shifts. Throughput is measured in volume per batch or tons of dry solids per day.
Screw Press: Known for its high level of automation and relatively low operational requirements. Once set up, it can operate for extended periods with minimal operator attention. Automatic cleaning cycles and self-adjusting mechanisms are common. This leads to lower labor costs.
Filter Press: Requires more operator attention due to its batch nature. While many modern filter presses are highly automated (e.g., automatic plate shifting, cloth washing, and cake discharge), operators are typically needed to monitor the cycle, ensure proper cake release, and handle potential cloth blinding issues. Automated systems reduce labor significantly but still often require more oversight than a screw press.
Screw Press: Generally has lower overall maintenance needs. The slow-moving screw leads to less wear and tear. Common maintenance tasks include periodic cleaning of the screen, lubrication of bearings, and eventual replacement of the screw or screen elements due to abrasive wear, which is infrequent.
Filter Press: Tends to have higher and more frequent maintenance requirements. The most common maintenance task is the replacement of filter cloths, which can wear, tear, or blind over time depending on the sludge type and operating conditions. Maintenance also involves checking and replacing hydraulic components, plate seals, and ensuring the integrity of the plate pack. Cleaning of the cloths is a regular operational activity.
Screw Press: Often requires moderate to high polymer consumption. Polymer is crucial for effective flocculation of sludge particles to create larger flocs that can be easily dewatered by the screw. The continuous shearing action of the screw can sometimes break down flocs, necessitating careful polymer dosing.
Filter Press: Generally requires moderate to low polymer consumption compared to screw presses, though some sludge types may still need significant conditioning. The high-pressure filtration mechanism is often more forgiving of floc strength, and the static nature of filtration (once the cake forms) reduces floc breakage. However, inadequate flocculation will lead to poor filtrate quality and reduced dewatering efficiency.
Screw Press: Typically boasts lower energy consumption per ton of dry solids processed. The main energy consumer is the slow-moving drive motor for the screw. Its continuous, low-power operation contributes to lower electricity bills.
Filter Press: Generally has higher energy consumption per ton of dry solids. The primary energy users are the powerful sludge feed pump, which operates at high pressure, and the hydraulic power unit for opening and closing the plates. While it operates in batches, the energy demand during the filtration cycle can be significant.
Capital Cost (Initial Investment):
Screw Press: Generally has a lower initial capital investment compared to a filter press of comparable capacity. Their simpler design and fewer moving parts contribute to a lower purchase price.
Filter Press: Typically has a higher initial capital investment. The robust frame, numerous plates, hydraulic system, and high-pressure feed pump contribute to a greater upfront cost.
Operational Cost (Ongoing):
Screw Press: Often results in lower overall operational costs due to lower energy consumption, less labor requirement, and reduced maintenance frequency. Polymer costs can be a significant factor but are often offset by other savings.
Filter Press: Can incur higher overall operational costs. While it produces a drier cake (reducing disposal costs), it typically has higher energy consumption, more frequent maintenance (especially filter cloth replacement), and potentially higher labor costs if automation is not maximized.
The physical space required for installation is an important consideration, especially for facilities with limited space.
Screw Press: Generally requires a smaller footprint for a given capacity. Its compact, upright design allows it to fit into tighter spaces, making it a good choice for existing plants or those with spatial constraints.
Filter Press: Typically requires a larger footprint due to the need for sufficient space around the machine for plate shifting, cake discharge, and maintenance access. The horizontal plate arrangement means it occupies more floor area for a given capacity. Additional space might be needed for ancillary equipment like feed tanks or pump skids.
Both screw presses and filter presses offer unique benefits and drawbacks. Understanding these can help fine-tune your selection process.
Advantages:
Continuous Operation: Offers a steady and consistent dewatering process, ideal for continuous sludge streams and reducing surge loading on downstream processes.
Lower Energy Consumption: Generally requires significantly less power to operate compared to filter presses, leading to lower electricity costs.
Less Operator Attention: High levels of automation allow for long periods of unattended operation, reducing labor costs and freeing up personnel for other tasks.
Smaller Footprint: Compact design requires less floor space, making it suitable for facilities with limited area.
Lower Capital Cost: Typically a more affordable initial investment compared to a filter press of similar capacity.
Less Sensitive to Feed Variations: Can handle slight fluctuations in sludge consistency more robustly than batch systems.
Enclosed System: Often operates as an enclosed system, reducing odor issues and maintaining a cleaner environment.
Disadvantages:
Lower Cake Solids: Produces a dewatered cake with higher moisture content (typically 15-25% solids), which can lead to higher disposal volumes and costs.
Potential for Higher Polymer Consumption: The continuous shearing action can sometimes require more polymer to maintain floc integrity, increasing chemical costs.
Not Ideal for All Sludge Types: May struggle with extremely fine, sticky, or highly abrasive sludges that are better suited for filter presses.
Limited Filtrate Quality: The filtrate quality might not always be as high as that from a filter press, potentially requiring further treatment if discharged directly.
Advantages:
High Cake Solids: Capable of achieving significantly drier cake (30-60% solids or more), leading to substantial reductions in disposal volume, weight, and associated costs.
Handles a Wider Range of Sludge Types: Highly versatile in treating diverse and challenging industrial sludges, including those with very fine particles, high abrasiveness, or specific chemical compositions.
Excellent Filtrate Quality: Produces a very clean filtrate, which can often be directly discharged or reused without extensive further treatment.
Robust Construction: Designed to withstand high operating pressures, providing durability for demanding industrial applications.
Scalability for Batch Volume: Can be configured with a large number of plates to handle very large volumes of sludge per batch.
Disadvantages:
Batch Operation: The intermittent nature requires accumulation tanks or buffer capacity, and the dewatering process is not continuous, potentially causing bottlenecks.
Higher Energy Consumption: Requires significant power for the high-pressure feed pump and hydraulic system, leading to higher electricity costs per ton of dry solids.
More Labor-Intensive: Even with automation, typically requires more operator attention for monitoring, cake discharge, and filter cloth maintenance.
Higher Capital Cost: The initial investment is generally higher due to the complex hydraulic system, numerous plates, and robust frame.
Larger Footprint: Requires more floor space for the equipment itself and for access during operation and maintenance.
Filter Cloth Maintenance: Frequent cleaning and eventual replacement of filter cloths are necessary, adding to maintenance time and cost.
Sensitivity to Sludge Variations: Performance can be more sensitive to sudden changes in sludge consistency or flocculation, potentially leading to blinding or poor cake release.
The suitability of a screw press or filter press often depends on the specific industry, sludge characteristics, and desired dewatering outcomes.
Screw presses are frequently chosen for applications requiring continuous, moderate dewatering with lower operational complexity and cost.
Municipal Wastewater Treatment Plants: Widely used for dewatering activated sludge, primary sludge, and digested sludge due to their continuous operation, low energy use, and suitability for biological sludges.
Food and Beverage Processing: Ideal for dewatering fruit and vegetable waste, brewery spent grains, dairy sludges, and other organic waste streams.
Pulp and Paper Industry: Employed for dewatering fibrous sludges, bark fines, and other pulp residuals.
Small to Medium Industrial Facilities: Suitable for various general industrial wastewater treatment applications where high dryness isn't the absolute top priority, but consistent operation is.
Textile Industry: For dewatering dye house sludge and other process wastewater residues.
Aquaculture: Dewatering fish farm waste and similar biological sludges.
Filter presses are the preferred choice for applications demanding very high cake solids, excellent filtrate quality, and the ability to handle challenging or specialized sludges.
Industrial Wastewater Treatment: A go-to for a vast array of industrial sludges, including those from chemical manufacturing, pharmaceuticals, automotive, metal finishing, and electronics.
Mining and Minerals Processing: Critical for dewatering tailings, mineral concentrates, and slurries where high solids recovery and dry cake are essential.
Chemical Processing: Used in the production of pigments, dyes, fine chemicals, and other chemical products where precise solid-liquid separation and clean filtrate are required.
Ceramics and Clay Industry: For dewatering clay slurries and other mineral suspensions.
Power Plants: Dewatering FGD (Flue Gas Desulfurization) gypsum and other ash slurries.
Bioremediation and Hazardous Waste: For dewatering sludges containing hazardous materials, where volume reduction and secure containment are paramount.
Recycling Operations: Such as dewatering plastic wash water or other recovery processes.
Project: Expansion of a municipal wastewater treatment plant in a suburban area. Challenge: The existing dewatering system (belt press) was struggling with increased sludge volumes and required significant operator attention and maintenance. The plant aimed for a more automated, lower-energy dewatering solution. Solution: Installation of two parallel screw press units. Outcome:
Reduced Labor: The screw presses operated with minimal supervision, freeing up two full-time operators for other plant duties.
Lower Energy Costs: Energy consumption for dewatering decreased by approximately 30% compared to the previous system.
Consistent Operation: The continuous nature of the screw presses handled variable sludge inflow effectively, maintaining stable dewatering performance.
Cake Solids: Achieved consistent 20-22% dry solids content, satisfactory for their disposal needs. Key Takeaway: The screw press provided a cost-effective, automated, and energy-efficient solution for continuous dewatering of municipal biological sludge.
Project: Upgrading the dewatering process for a hazardous waste sludge stream at a chemical manufacturing facility. Challenge: The sludge contained fine, highly concentrated chemical precipitates and required extremely high dry solids content to minimize specialized disposal costs and ensure regulatory compliance. Existing dewatering methods were not achieving the desired dryness. Solution: Installation of a fully automated, high-pressure membrane filter press. Outcome:
High Cake Solids: Achieved an impressive 55-60% dry solids content, significantly reducing the volume of hazardous waste by over 70%.
Disposal Cost Reduction: The ultra-dry cake drastically cut down on transportation and landfill costs for hazardous waste.
Excellent Filtrate Quality: The filtrate was clean enough to be recycled back into the plant's process, reducing fresh water consumption.
Batch Integrity: The batch operation provided precise control over each dewatering cycle, crucial for consistent hazardous waste management. Key Takeaway: For applications demanding maximum dryness, superior filtrate quality, and the ability to handle challenging or regulated sludges, the filter press offers unmatched performance despite higher capital and operational complexities.
Selecting between a screw press and a filter press is a strategic decision that impacts operational efficiency, costs, and environmental compliance. There is no one-size-fits-all answer; the optimal choice depends on a careful evaluation of several key factors specific to your application.
Summarize the Key Factors to Consider:
Sludge Type and Characteristics:
Consistency & Solids Content: What is the initial % solids? Is it thin and watery, or thick and viscous?
Particle Size & Nature: Is it fibrous, granular, fine, abrasive, oily, or biological?
Compressibility: How easily does the sludge release water under pressure?
Flocculation Requirements: How does it react to polymer conditioning?
Desired Cake Solids Percentage:
What is the target dryness for disposal, reuse, or further processing? Higher dryness means lower disposal costs.
Throughput and Capacity Requirements:
What volume of sludge needs to be processed per day/hour? Is the sludge flow continuous or intermittent?
Budget (Capital and Operational Costs):
What is the available upfront investment?
What are the long-term operational costs (energy, polymer, labor, maintenance, disposal)?
Operational Requirements & Automation Level:
What level of operator attention is available or desired?
Is continuous, highly automated operation preferred, or can batch processing be managed?
Footprint/Space Availability:
How much physical space is available for the dewatering equipment and its ancillary components?
Filtrate Quality Requirements:
What is the acceptable quality for the separated liquid? Will it be discharged, recycled, or sent for further treatment?
Still not sure whhich to choose, try contact nihaowater.com now. we can help you.
The screw press stands out for its continuous operation, lower energy consumption, minimal labor requirements, and smaller footprint, making it an excellent choice for consistent, medium-volume dewatering of biological and municipal sludges where moderate cake dryness is acceptable.
Conversely, the filter press is the champion of high cake solids content and versatility, capable of handling a vast array of challenging industrial sludges. Its batch operation and higher energy/labor demands are often offset by the significant reductions in disposal costs achieved through superior dewatering efficiency and excellent filtrate quality.
