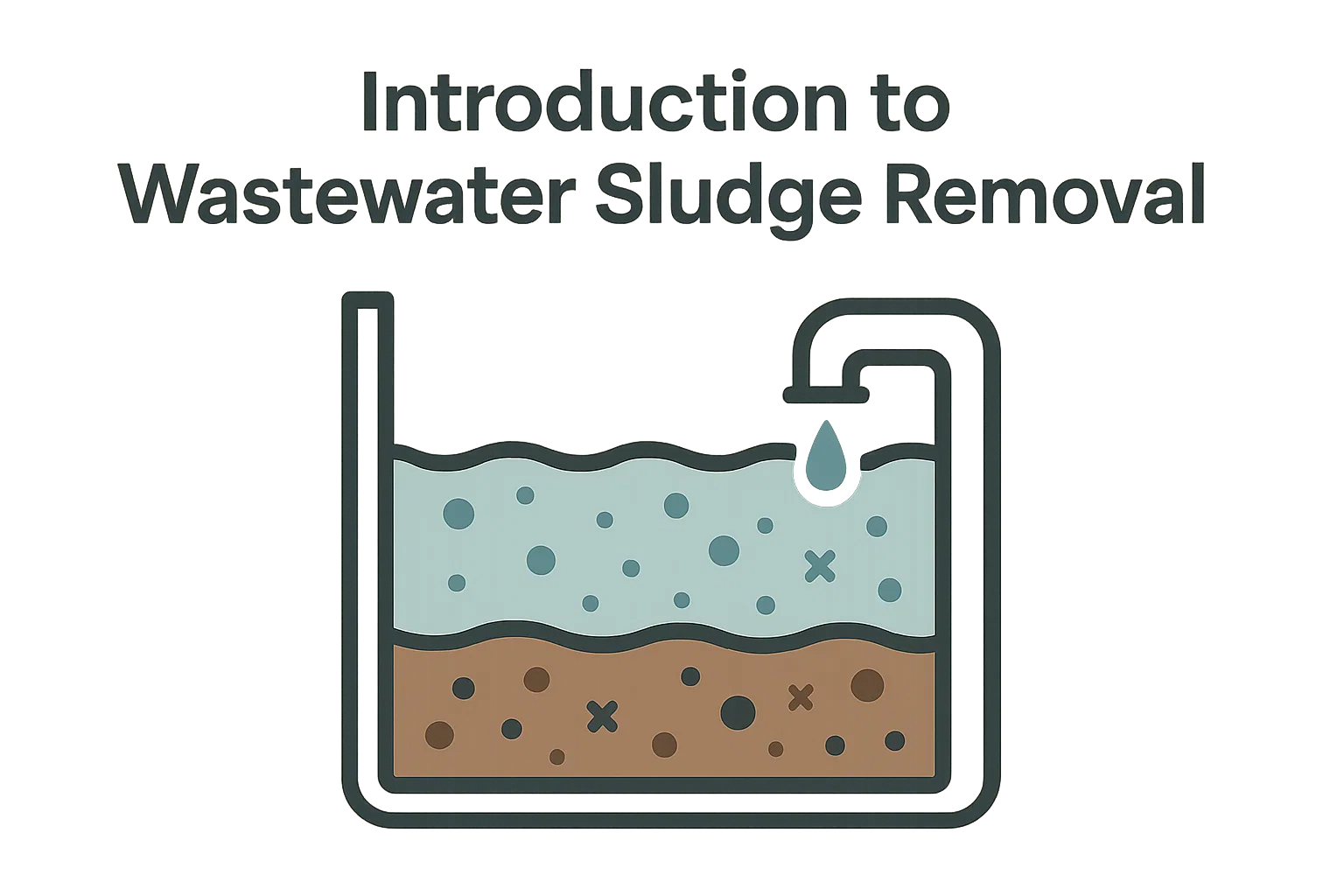

Wastewater sludge is the semi-solid byproduct created during the wastewater treatment process. It's essentially the solid material that separates from the liquid waste. This material is a complex mixture of organic matter (like human waste, food scraps), inorganic solids (sand, grit), microorganisms (bacteria, viruses), and various chemicals, including heavy metals and pharmaceuticals.
Properly removing and treating this sludge is a critical part of the wastewater management cycle. Untreated sludge is a significant environmental and public health hazard. The goal of sludge removal isn't just to get rid of waste, but also to reduce its volume, eliminate harmful pathogens, and in many cases, recover valuable resources like energy and nutrients. By doing this, we can protect our ecosystems, safeguard human health, and promote a more sustainable approach to waste management.
The exact composition of sludge varies depending on its source (municipal vs. industrial) and the treatment process. However, it generally consists of:
Organic Matter: Biodegradable materials from human waste and food.
Inorganic Solids: Grit, sand, and other non-biodegradable particles.
Microorganisms: A diverse population of bacteria, fungi, and other microbes that play a key role in breaking down organic material.
Contaminants: This is a major concern. Sludge can contain a wide range of toxic substances, including heavy metals (lead, mercury), persistent organic pollutants (PCBs), and emerging contaminants like PFAS (per- and polyfluoroalkyl substances), often called "forever chemicals."
Sludge is typically categorized by the stage of the treatment process in which it is generated:
Primary Sludge: This is the solid material that settles out of the wastewater during the initial treatment stages. It has a high organic content but is often considered raw and highly putrescible, meaning it will decompose and smell very quickly.
Secondary Sludge: Also known as activated sludge, this is produced during the biological treatment phase. It is rich in microorganisms that have been used to break down the organic matter in the wastewater.
Tertiary Sludge: This type of sludge results from more advanced treatment processes, such as chemical coagulation or filtration, designed to remove specific pollutants that remain after the primary and secondary stages.
The amount and characteristics of sludge produced can be influenced by several factors, including:
The type and concentration of pollutants in the incoming wastewater.
The specific wastewater treatment technologies being used.
The season of the year, which can affect biological activity in the treatment process.
The high concentration of pathogens, heavy metals, and other toxic chemicals in untreated sludge poses serious risks to both the environment and human health. Improper management can lead to:
Water Contamination: Leaching of pollutants from sludge into groundwater and surface water.
Soil Degradation: Accumulation of heavy metals and other contaminants in soil, which can harm plants and animals.
Air Pollution: Emissions of harmful gases and odors from anaerobic decomposition or incineration without proper controls.
Disease Transmission: Pathogens in sludge can lead to the spread of diseases to humans and animals.
These are the key points for your introductory section. You can now use this information to write the first part of your article, laying a solid foundation for the more detailed discussions on methods and practices that follow.
The journey of wastewater sludge from a liquid byproduct to a manageable solid involves several key processes. These methods are often used in a sequence, starting with thickening, then dewatering, and finally, some form of digestion or treatment before disposal.
The first step in sludge management is often thickening. The goal is to reduce the volume of the sludge by removing excess water, making it easier and cheaper to handle, store, and transport.
Gravity Thickening: This is the simplest and most common method. Sludge is pumped into a large circular tank called a gravity thickener, where solids settle to the bottom and water rises to the top. A slow-moving rake at the bottom of the tank gently pushes the thickened sludge towards a central outlet.
Dissolved Air Flotation (DAF): Unlike gravity thickening, DAF uses tiny air bubbles to float solid particles to the surface. Air is dissolved into the sludge under pressure, and when the pressure is released, the bubbles attach to the solid particles, causing them to rise and form a floating layer that can be skimmed off.
Rotary Drum Thickeners: These devices use a rotating cylindrical screen to separate water from the sludge. The sludge is fed into the drum, and as it rotates, water drains through the screen while the solids remain inside, becoming a thicker, more concentrated sludge.
After thickening, the next step is dewatering, which removes even more water from the sludge to turn it into a solid or semi-solid "cake." This significantly reduces the weight and volume, making it more cost-effective to dispose of.
Belt Filter Presses: This method uses two porous belts that pass over a series of rollers. Sludge is squeezed between the belts, and water is pressed out, resulting in a solid cake that can be easily handled.
Centrifuges: A centrifuge works like a high-speed washing machine spin cycle. Sludge is spun rapidly in a cylindrical bowl, which separates the denser solids from the liquid through centrifugal force. The solids are then scraped out as a dewatered cake.
Plate and Frame Filter Presses: This is a batch process where sludge is pumped into a chamber composed of a series of plates and frames. The liquid passes through a filter cloth, and the solids remain behind, forming a dense, dry cake.
Once the sludge is dewatered, it's often treated further. Anaerobic digestion is a biological process where microorganisms break down the organic matter in sludge in the absence of oxygen.
Process Overview: Sludge is placed in a sealed, heated tank called a digester. The microbes consume the organic material, producing biogas (a mixture of methane and carbon dioxide) and a stabilized, nutrient-rich byproduct called biosolids.
Benefits of Anaerobic Digestion: It stabilizes the sludge, reducing pathogens and odors, and produces a renewable energy source (biogas) that can be used to power the treatment plant or sold as a revenue stream. The resulting biosolids can be used as a soil amendment.
Incineration is a thermal treatment method that involves burning the dewatered sludge at high temperatures.
Process Overview: Sludge is fed into a specialized furnace, where it is combusted. The process reduces the sludge to a small volume of inert ash and releases heat energy, which can be recovered.
Advantages and Disadvantages: Incineration dramatically reduces the volume and mass of sludge and destroys pathogens and other organic contaminants. However, it is an energy-intensive process and can produce air pollutants, requiring costly emissions control equipment.
Land application is the practice of using treated sludge (biosolids) as a soil fertilizer. This is only possible if the sludge has been treated to meet strict regulatory standards to reduce pathogens and other contaminants.
Regulations and Guidelines: In the United States, the Environmental Protection Agency (EPA) sets the standards for land application under the Part 503 Rule, which defines the quality and use of biosolids. This rule classifies biosolids into different categories (e.g., Class A and Class B) based on pathogen levels.
Benefits and Risks: Land application recycles valuable nutrients like nitrogen and phosphorus back into the soil. However, there are risks of heavy metals and other contaminants accumulating in the soil over time, as well as potential for pathogen runoff if not managed correctly.
These methods represent the primary ways wastewater sludge is handled. They often work together in a facility to achieve a safe, effective, and environmentally sound outcome.

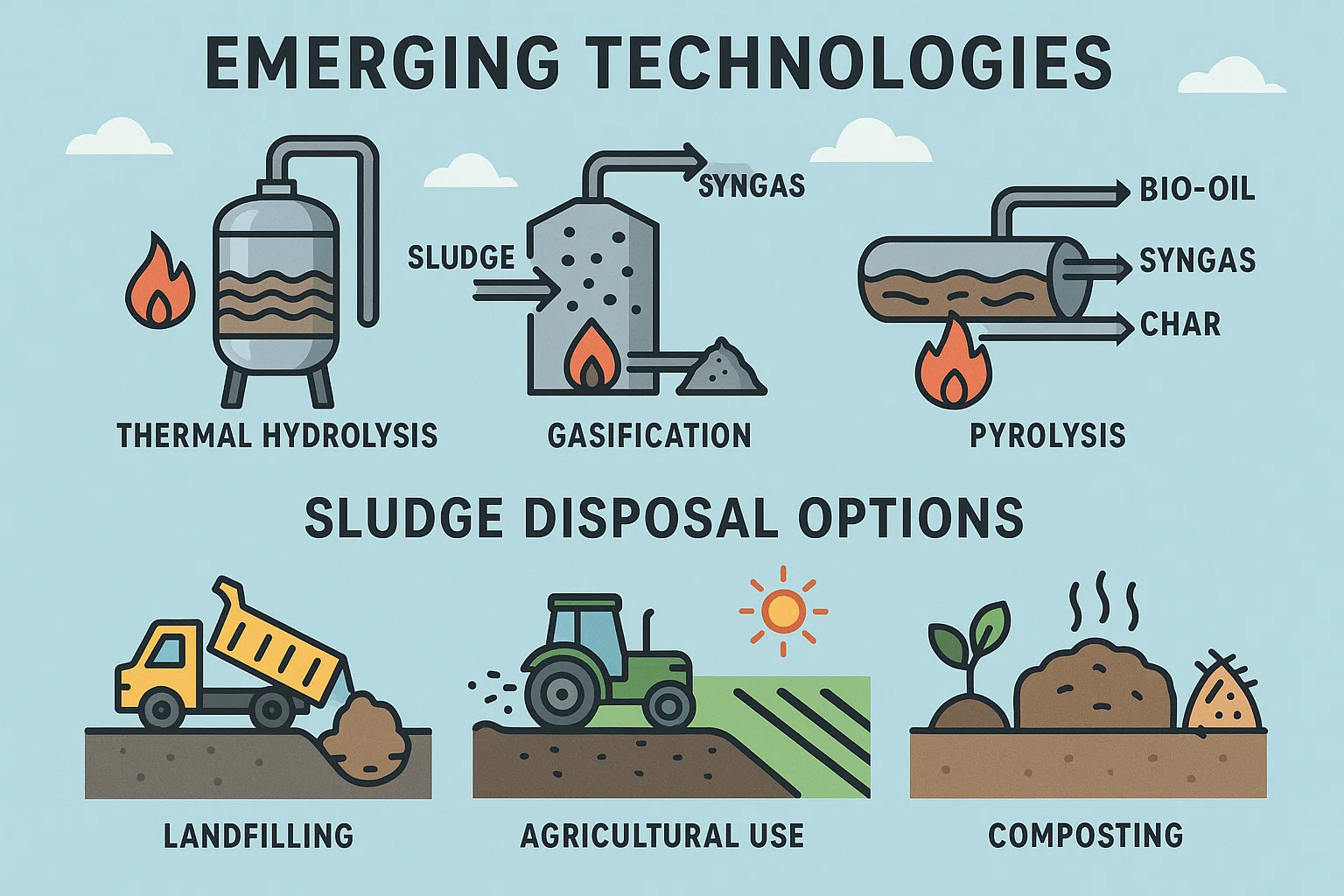

Wastewater sludge management is an evolving field, with new technologies being developed to improve efficiency, reduce environmental impact, and recover valuable resources.
Thermal Hydrolysis: This is a pre-treatment process that uses high heat and pressure to "cook" the sludge before anaerobic digestion. The process breaks down the complex organic matter in the sludge, making it more digestible for the microbes. This significantly increases the biogas production from anaerobic digestion and improves the dewaterability of the resulting biosolids.
Gasification: A high-temperature process that converts carbon-based materials like dewatered sludge into a clean-burning synthetic gas called syngas. Unlike incineration, which burns the material with excess oxygen, gasification occurs in a controlled low-oxygen environment. The syngas can be used as a fuel source, and the process leaves behind an inert solid residue.
Pyrolysis: This method involves heating sludge in the complete absence of oxygen. The high temperatures break down the organic compounds into valuable products, including bio-oil, syngas, and a solid char. These products can be used as fuel or for other industrial applications.
Once sludge has been treated and stabilized, it still needs a final destination. The choice of disposal method depends on the sludge's characteristics, local regulations, and economic factors.
Landfilling: This is one of the most common disposal methods for treated sludge that doesn't meet the standards for land application. The dewatered sludge cake is transported to a permitted landfill and buried. While it provides a final disposal solution, it takes up valuable space and can still pose long-term environmental risks if not managed properly.
Agricultural Use: When sludge is treated to meet strict regulatory standards, it's called biosolids and can be safely applied to agricultural land as a fertilizer. This recycles essential nutrients like nitrogen and phosphorus, reducing the need for chemical fertilizers.
Composting: Sludge can be mixed with bulking agents like wood chips or straw and allowed to decompose aerobically. The heat generated during composting kills pathogens, and the final product is a nutrient-rich compost that can be used for landscaping, gardening, or soil reclamation.
Other Disposal Methods: In some cases, treated sludge may be used for land reclamation projects, such as restoring mine sites. It can also be mixed with other materials to create construction products like bricks or lightweight aggregates.
The costs of sludge management are a major component of a wastewater treatment plant's total budget, often accounting for a significant portion of its operational costs. These expenses can be broken down into four main categories:
These are the one-time, upfront costs for building and equipping a sludge management facility. They represent a significant initial investment.
Equipment: The purchase price of major machinery like belt filter presses, centrifuges, and anaerobic digesters can range from hundreds of thousands to millions of dollars, depending on the scale and technology.
Infrastructure: This includes the cost of constructing buildings, concrete pads, storage tanks, and pipelines needed to house and operate the equipment.
Design and Engineering: Professional services for designing the system, obtaining permits, and overseeing construction can account for 10-20% of the total capital cost.
These are the ongoing expenses required to run and maintain the sludge removal processes. They can make or break a project's long-term financial viability.
Energy: Sludge management, especially processes like dewatering and incineration, is very energy-intensive. Pumping sludge, running centrifuges, and heating digesters all consume a significant amount of electricity and/or fuel.
Chemicals: Many sludge treatment processes rely on chemicals. For example, polymers (flocculants) are often added to help solids clump together during thickening and dewatering, which can be a major recurring expense.
Labor: The cost of skilled labor to operate, monitor, and maintain the equipment is a consistent and important factor.
The cost of moving sludge from the treatment plant to its final destination can be substantial, especially for smaller facilities with long hauling distances.
Hauling: This includes the cost of fuel, vehicle maintenance, and driver wages for transporting dewatered sludge cake to a landfill, incinerator, or agricultural site. Reducing the volume of sludge through dewatering is a key strategy for lowering these costs, as hauling fees are often based on weight or volume.
These are the fees charged by third-party facilities for accepting and disposing of the sludge.
Tipping Fees: Landfills and incinerators charge a tipping fee, or gate fee, based on the volume or weight of the sludge they accept.
Land Application Fees: While often less expensive than landfilling, there can still be costs associated with land application, such as fees for soil testing, permits, and a contractor to apply the biosolids to the land.

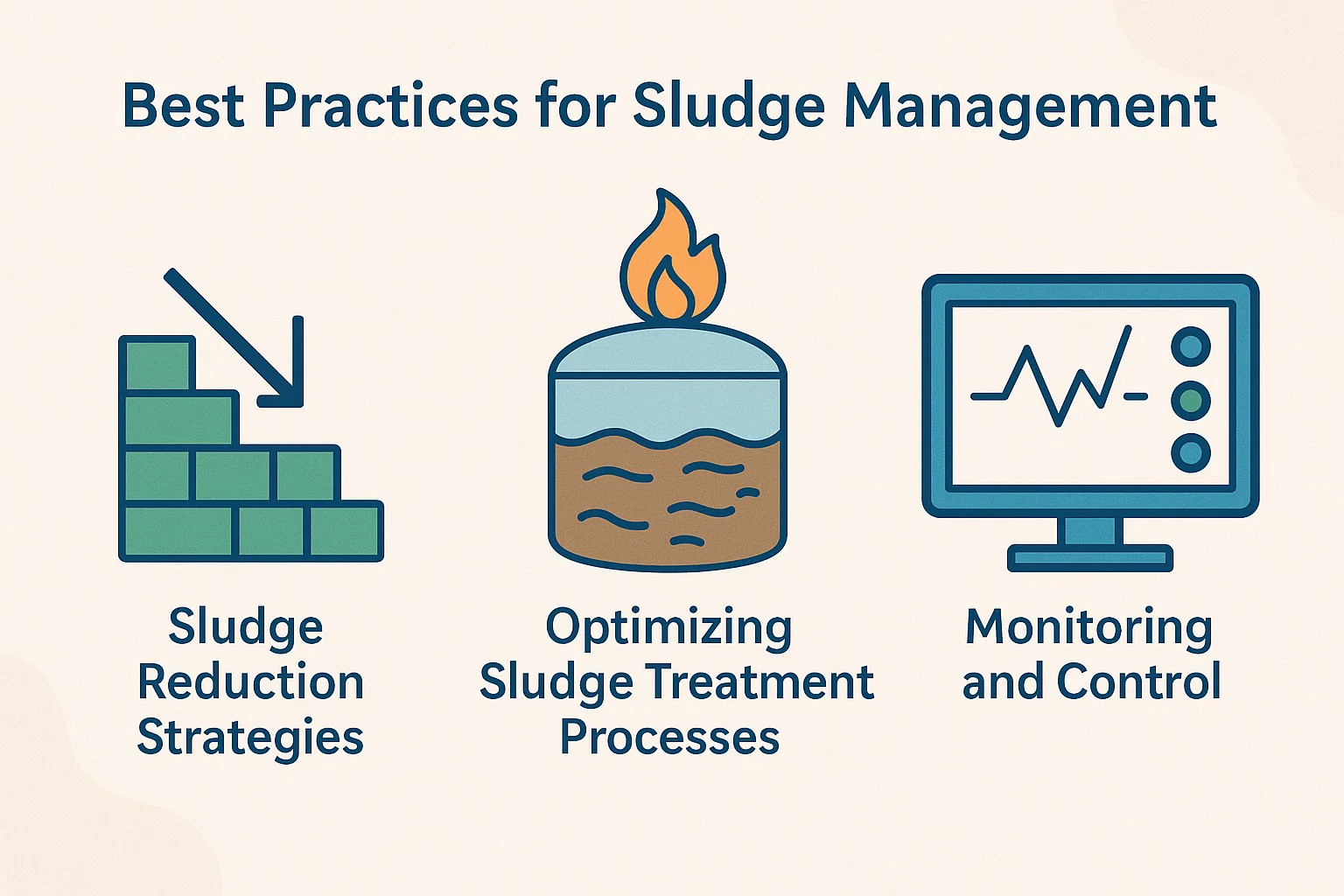

Effective sludge management goes beyond simply processing the waste. It involves a strategic approach to reduce volume, optimize treatment, and ensure a stable, reliable operation.
Sludge Reduction Strategies: The most effective way to manage sludge is to produce less of it in the first place. This can be achieved by optimizing the wastewater treatment process to minimize the formation of excess biomass. Some plants use advanced processes like membrane bioreactors or sequencing batch reactors that can lead to lower sludge yield.
Optimizing Sludge Treatment Processes: The key is to run the chosen treatment methods as efficiently as possible. For example, for anaerobic digestion, maintaining the correct temperature, pH, and nutrient balance is crucial for maximizing biogas production and pathogen destruction. Regular calibration and maintenance of dewatering equipment, like centrifuges and belt presses, ensures they operate at peak performance, reducing water content and saving on hauling costs.
Monitoring and Control: Continuous monitoring of key parameters is essential. This includes tracking the volume and solids content of incoming sludge, the efficiency of dewatering, and the quality of the final biosolids. Using modern Supervisory Control and Data Acquisition (SCADA) systems allows operators to make real-time adjustments, improving efficiency and preventing potential problems.
Sludge management is one of the most heavily regulated aspects of wastewater treatment. Adhering to these regulations is not only a legal requirement but also crucial for protecting public health and the environment.
EPA Regulations (Part 503 Rule): In the United States, the Environmental Protection Agency's (EPA) Part 503 Rule is the primary federal regulation governing the use and disposal of biosolids. This rule sets strict standards for pathogen reduction and limits the concentration of heavy metals and other pollutants in biosolids. It also requires extensive monitoring, record-keeping, and reporting to ensure compliance.
State and Local Regulations: In addition to federal rules, state and local governments often have their own, sometimes even stricter, regulations. These can include specific permitting requirements for land application, limits on the amount of biosolids that can be applied to a given area, and rules about the proximity of application sites to homes and water bodies.
Importance of Compliance: Non-compliance with these regulations can lead to severe consequences, including fines, legal action, and a loss of public trust. Maintaining meticulous records of sludge treatment and disposal is a fundamental best practice for demonstrating that all environmental and health standards have been met.
The effectiveness of any sludge management strategy heavily depends on the equipment and technology used. This section will highlight some of the leading manufacturers and recent innovations in the field.
Top Equipment Manufacturers: The market for wastewater treatment equipment is robust, with several key companies specializing in sludge handling. These manufacturers offer a wide range of products, from primary thickening devices to advanced dewatering and thermal treatment systems. Some of the well-known names in this space include:
Alfa Laval: A global leader in heat transfer, separation, and fluid handling, offering a variety of centrifuges and decanters for sludge dewatering.
Andritz: Provides a comprehensive portfolio of mechanical and thermal sludge treatment technologies, including belt presses, centrifuges, and thermal dryers.
Huber Technology: Specializes in equipment for municipal and industrial water treatment, with a focus on sludge thickening and dewatering solutions like screw presses and rotary screens.
GEA Group: Known for its expertise in process engineering, the company provides centrifuges and separation equipment for various industrial applications, including wastewater sludge.
The industry is constantly evolving to make sludge management more efficient, cost-effective, and environmentally friendly. Recent innovations focus on automation, energy recovery, and resource extraction.
Smart and Automated Systems: Modern equipment is increasingly equipped with sensors and automation software that allow for real-time monitoring and control. These smart systems can automatically adjust operating parameters to optimize performance, reduce chemical use, and minimize labor requirements. This leads to more consistent results and lower operational costs.
Energy-Neutral and Resource Recovery Solutions: There's a growing trend towards turning sludge treatment from a cost center into a potential revenue stream. Technologies like thermal hydrolysis and anaerobic digestion are being refined to maximize biogas production, which can be used as an energy source for the plant. Furthermore, advanced processes are being developed to recover valuable resources like phosphorus, a critical nutrient for agriculture, from the sludge.
Real-world examples provide valuable insights into the successes and challenges of wastewater sludge removal projects. They highlight that there is no one-size-fits-all solution, and the best approach often depends on local conditions, regulations, and financial resources.
Successful Sludge Removal Projects:
Washington D.C.'s Blue Plains Advanced Wastewater Treatment Plant: This plant is a great example of implementing advanced technologies to enhance sludge management. By adopting a thermal hydrolysis process before anaerobic digestion, the facility significantly increased its biogas production, which it now uses to generate electricity. This has made the plant largely energy self-sufficient and reduced the volume of biosolids that need to be managed, showcasing a successful blend of efficiency and sustainability.
The Ringsend Wastewater Treatment Plant in Dublin, Ireland: This facility also utilizes thermal hydrolysis to improve the efficiency of its biosolids processing. The project has resulted in a substantial reduction in the amount of waste requiring disposal, demonstrating how this technology can be successfully integrated into existing infrastructure to achieve significant environmental and economic benefits.
Lessons Learned: These case studies teach us that successful projects often share common traits:
A thorough analysis of existing conditions and potential technologies is essential.
The long-term operational costs and energy balance must be considered, not just the initial capital investment.
Adopting new technology requires careful planning, skilled labor, and ongoing monitoring to ensure optimal performance.
Integrating sustainable practices and resource recovery can transform a waste disposal problem into a beneficial, revenue-generating opportunity.
The field of wastewater sludge management is moving toward a more sustainable and circular economy model. The focus is shifting from simple disposal to resource recovery.
Sustainable Sludge Management: Future trends are increasingly centered on sustainability. This includes minimizing the environmental footprint of treatment processes, reducing greenhouse gas emissions, and creating products that can be safely reused. The goal is to view sludge not as a waste, but as a resource.
Resource Recovery from Sludge: Beyond energy recovery (biogas), there is a strong push to extract other valuable resources from sludge. This includes recovering phosphorus and nitrogen to produce fertilizers, or turning the final ash from incineration into a material for concrete and other construction products. This "waste-to-resource" approach is becoming the new paradigm for the industry.
