Step-by-Step Guide to Screw Press Sludge Dewatering

You can dewater sludge by using a screw press. This method helps you remove water from sludge, making it lighter and easier to handle. Reducing the volume of sludge means you spend less on transport and disposal. By following clear steps, you keep the process safe and efficient. You will find that this approach is both simple and cost-effective.

Key Takeaways

• A screw press takes water out of sludge. This makes the sludge lighter. It is easier to move and handle. This helps lower transport and disposal costs.

• Before you start, look at the sludge type. Check the equipment for any damage. This helps things run smoothly. It also stops breakdowns.

• Use a clear step-by-step process to run the screw press. This helps you avoid problems. It keeps things working well.

• Watch important signs like moisture and energy use often. This helps you find problems early. It can help you save money.

• Always put safety first. Wear protective gear. Keep the work area clean and neat.

Screw Press Dewatering Basics

What Is a Screw Press?

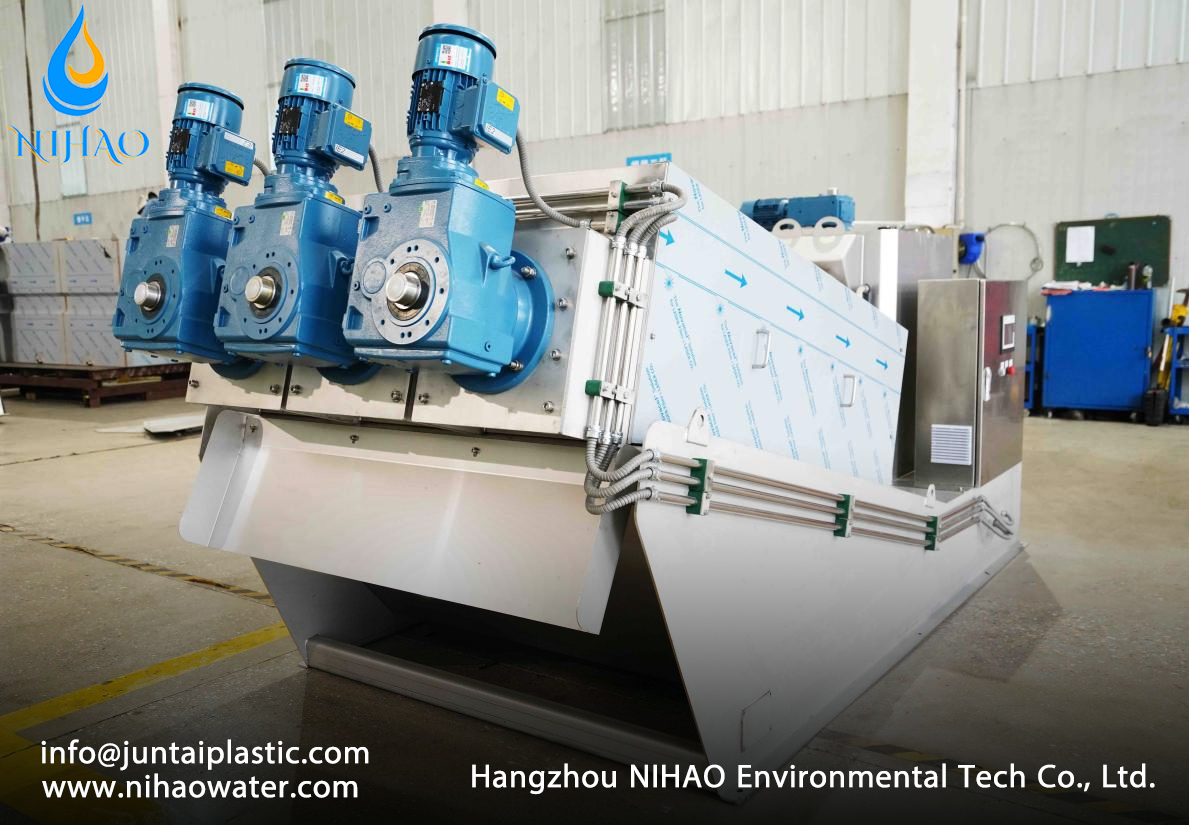

You use a screw press to separate water from sludge. This machine works with a slowly turning screw inside a cylinder. The screw pushes the sludge forward while water drains out through small openings in the screen. The design helps you handle sludge with less mess and less risk of clogging. Here is a table showing the main parts and features of a screw press:

How Dewatering Works

When you feed sludge into the screw press, it enters a filter chamber. The screw moves the sludge forward. As the screw turns, the space between the threads gets tighter. This action increases pressure on the sludge. Water escapes through the screen, and the rings keep the system from blocking up. The screw press squeezes the sludge until a drier solid, called a cake, comes out at the end. You collect the water for reuse or safe disposal.

Tip: The slow speed of the screw press means less wear and tear, so you get longer machine life.

Benefits of Screw Presses

You gain several advantages when you use a screw press for sludge dewatering:

• You get a simple, automatic process that needs little attention.

• The machine uses less energy than many other options.

• You spend less time on cleaning and maintenance.

• The screw press gives you a solid cake with about 10% dry solids. While this is lower than a filter press (which can reach up to 50%), you benefit from easier operation and lower costs.

A screw press helps you manage sludge in a way that is both efficient and reliable.

Preparation Steps

Assessing Sludge

You need to know the sludge type before starting. Sludge can come from many places. Each kind acts differently. Municipal sludge comes from city water treatment. Industrial sludge is from factories and may have chemicals or metals. There is also sludge from pig manure, food factories, or septic tanks. Each type needs special care.

You should check the sludge for how much solid it has. Look at the size of the particles and how wet it is. These things help you pick the best screw press settings.

Equipment Check

Check your equipment before you start. Look at the screw and screen for damage. Make sure all parts are working. Take out any rocks or metal from the feed inlet. These things can break the machine or stop the flow.

Tip: Always make sure the material spreads out evenly in the feed inlet. If it does not, the machine will not work as well.

Safety Setup

Safety is important when using machines. Wear gloves, goggles, and protective clothes. Keep the area around the screw press clean and dry. Put up warning signs if others are near. Test emergency stops and alarms before starting. These steps keep you and others safe.

Note: Good preparation keeps you safe and helps everything go well.

Operating the Screw Press

Starting the Press

You need to follow a clear process when starting the screw press. This helps you avoid problems and keeps the equipment running smoothly. Here is a step-by-step guide:

1. Check all pipeline connections. Make sure everything is tight and correct.

2. Power on the machine. Watch for normal operation.

3. Prepare the dosing system. Get the right chemicals ready, such as PAM cationic with a molecular weight of 8000-10000.

4. Watch the spiral shaft. It should rotate smoothly without strange noises.

5. Set the start and stop times for automatic operation. Adjust the flow control tube based on the sludge concentration.

6. Do not overload the machine. Too much sludge can build up in the thickening section.

7. Keep large solids out of the sludge pump and filter.

8. Avoid pouring water on electrical parts during cleaning.

9. Add or replace gear lubricating oil in the reducer every three months.

10. Check for loose nuts every month.

11. Perform maintenance every three months.

Tip: Always follow these steps before each use. This routine keeps your screw press in good shape and helps you avoid breakdowns.

Feeding Sludge

You must feed the sludge into the screw press at a steady rate. Use a pump to move the sludge from the holding tank to the feed inlet. Make sure the sludge spreads out evenly. If you see clumps or dry spots, stop and fix the problem. Uneven feeding can cause poor dewatering and may damage the machine.

• Use a screen or filter to catch large debris before it enters the press.

• Watch the flow. If the sludge moves too fast, the press may not remove enough water.

• If the flow is too slow, the machine may not work at full capacity.

Note: Always keep an eye on the feed rate. A steady flow gives you the best results and protects your equipment.

Adjusting Settings

You can change the settings on the screw press to match the type of sludge you have. The speed of the screw is very important. If you slow down the screw, you get a drier cake, but the machine will process less sludge each hour. If you speed it up, you can handle more sludge, but the cake may be wetter.

Think about what you need most. If you want a dry cake for easy disposal, use a slower speed. If you need to process a lot of sludge quickly, use a faster speed. Always check the sludge type, the amount you want to process, and the conditions in your plant.

Tip: Try different speeds and watch the results. You will find the best setting for your needs by testing and observing.

Monitoring & Handling

Performance Checks

You should check if your screw press works well. Look at three main things. First, see how much water is left in the cake. Next, check how much sludge you process. Last, watch how much energy you use. These things are called KPIs. They help you find problems early and save money.

Tip: Write down these numbers every day. You will notice changes and fix problems before they get big.

Troubleshooting

Problems can happen when you dewater sludge. You can fix most issues if you know what to check. Here are some common problems and how to solve them:

Note: Stop the machine if you hear loud sounds or see leaks.

Managing Dewatered Cake

After dewatering, you need to handle the cake safely. Pick a way that fits your needs and follows the rules.

Clean your screw press after each use to keep it working well. Follow these steps:

1. Take out bolts from the shaft seal housing.

2. Remove the screen as your manual shows.

3. Unplug air lines and take out the cylinder rod.

4. Loosen screws on the bearing and hold up the screw.

5. Take off the center plate and pull out the parts.

6. At the inlet, remove the cover and disconnect the coupling.

7. Pull the screw out and check for rubbing.

Tip: Clean every part before you start again. This stops clogs and keeps your machine in good shape.

Optimization & Safety Tips

Improving Efficiency

You can make your screw press work better by changing a few things. Try these ideas:

• Change how fast the screw turns. If it goes faster, more water comes out and you can process more sludge.

• Check how thick the sludge is. It should not be too thick or too thin.

• Use the right amount of polymer. Cationic Polyacrylamide (CPAM) helps most sludge types.

If you make the screw turn faster, more water comes out. This means you can process more sludge and make more product. But it can also change how good the final cake is.

If you adjust these things, you can get more dry solids. You can go from 13% up to 17%. You can also catch more solids, from less than 80% up to 95%. Some plants have filled a 25-ton trailer in only 6.5 hours by doing this.

Operator Safety

Safety is very important. Always wear gloves, goggles, and protective clothes. Keep your work area clean and dry. Test emergency stops before you start working. Training helps you stay safe and fix problems.

Tip: Training often helps you and your team stay safe and ready for anything.

Maintenance

Doing regular checks keeps your screw press working well. Look at your equipment often. Use tests like ultrasonic thickness checks to find worn parts. Oil moving parts every week. You can change the thrust bearing without taking out the screw shaft or gear reducer.

Some problems you might see are:

• Big pieces can jam the machine—clean it often.

• The motor can get too hot—change how much sludge you feed.

• Seals can leak—look at them and change them if needed.

• Water can get stuck—clear the outlet if it does not drain.

• Parts can get loose—tighten bolts and connections.

Note: Fixing small problems quickly and checking often helps you avoid big repairs and keeps your screw press working longer.

You can use a screw press to make sludge dewatering easy. This way helps you save money and cut down on waste. Many cities have seen dewatering get better by 30%. They also spend less money. You help the environment by using less energy and making less waste. Most places get their money back in 3 to 16 months.

Follow these steps to stay safe and get good results. You will also help your plant work better.

FAQ

How often should you clean a screw press?

You should clean your screw press after each use. Regular cleaning keeps the machine running well and prevents clogs. Always follow the steps in your manual for best results.

What type of sludge works best with a screw press?

Screw presses handle many sludge types. You get the best results with municipal, industrial, or food processing sludge. Thick, fibrous sludge usually dewaters better than very thin or oily sludge.

Can you use a screw press without adding chemicals?

You can run a screw press without chemicals, but you may get a wetter cake. Adding polymers like cationic polyacrylamide helps separate water from solids and improves dryness.

What safety gear do you need when operating a screw press?

Always wear gloves, goggles, and protective clothing. These items protect you from splashes and moving parts. Make sure you test emergency stops before starting the machine.
